| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | HHS |
| Certification: | ce, CE UN38.3 Rohs,MSD |
| Model Number: | HHS18650-6s1p battery |
| Minimum Order Quantity: | 30 - 999 Packs |
| Price: | $8.90 |
| Packaging Details: | 1.our standard blister package :2pieces per box 30boxes per carton 2.In accordance with your requirement |
| Supply Ability: | 50000 Pack/Packs per Week 18650 li ion battery 22.2v |
| Size: | 25*112*68mm(with Pcm) | Production: | 18650 Li Ion Battery 22.2v |
|---|---|---|---|
| OEM/ODM: | Yes | Warranty: | 365 Days |
| Package: | Antistatic Bag | Cycle Life: | 800 Times |
| Application: | LED Emergency Power Supply ,small Digital Device | MOQ: | 50 Pcs |
| Delivery Time: | 5-7 Days | Type: | Li-Ion |
| High Light: | HHS 2.2ah 24 Volt 18650 Battery Pack,800 times 24v 18650 battery pack,800 Times HHS battery |
||
Customized 18650 Rechargeable Li Ion Battery packs 22.2v 24v 2.2ah
18650 li ion battery 22.2v
| Model |
HHS18650-6s1p battery |
| Nominal voltage |
24v |
| Nominal capacity | 2200mah |
| Shape | can be customized |
| Max Size(customized) | thickness × width ×length (mm) |
| 25*112*68mm(with pcm) | |
| Max charge current | 1100MAH |
| Charging method | charge with constant current 1C to 25.2v,then charge with constant voltage 8.4v, till charge current less than 0.01C |
| Discharge current | 1100mah |
| Discharge cut-off voltage | the over-discharge detection voltage of PCM |
| Operating environment | Charging, 0°C ~ 45°C ; 65±20%RH |
| Discharging, -10°C~60°C ; 65±20%RH | |
| Storage environment | -10°C~45°C |
| 65±20%RH | |
| storage for a long time(>3 months) and the storage condition shall be:<35°C;65±20%RH; | |
| CycleLife | >300times |
| Charging Attention | Charging current and charging voltage should be less than specified in the Product Specification. |
| The charger shall be designed to comply with Specification. | |
| It is dangerous that charging with higher current or voltage than Product Specification may cause damage to the cell electrical,mechanical safety performance. |
Customized 18650 li ion battery 22.2v 24v 2.2ah lithium ion battery packs with PCB/PCM

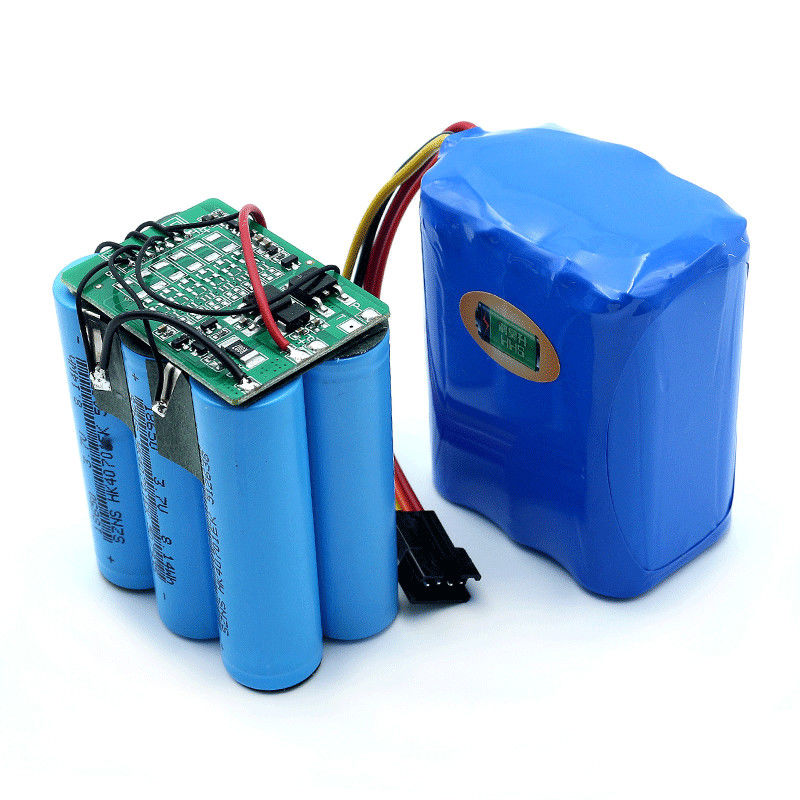

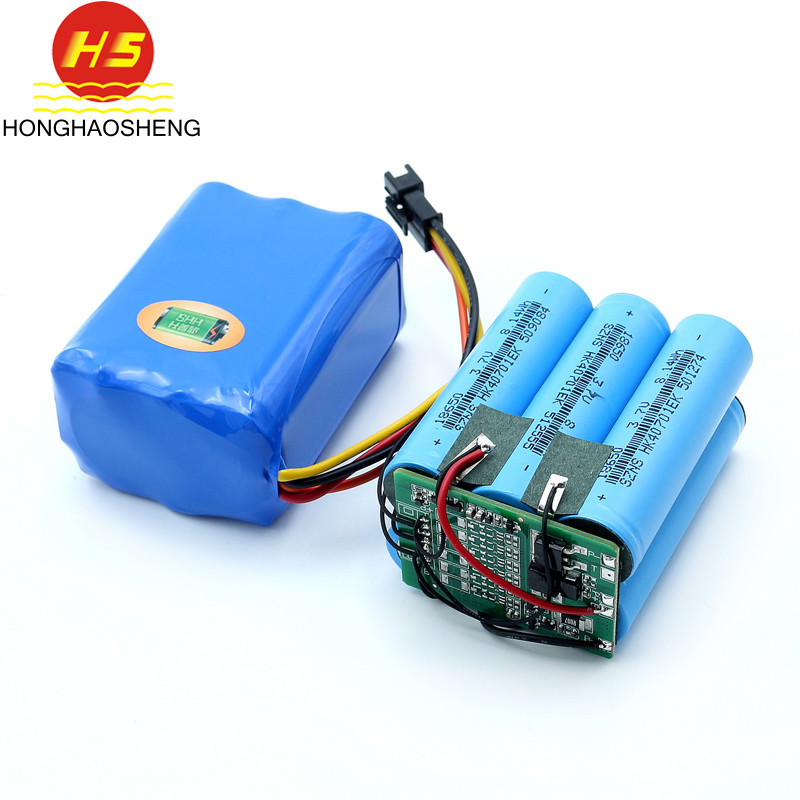

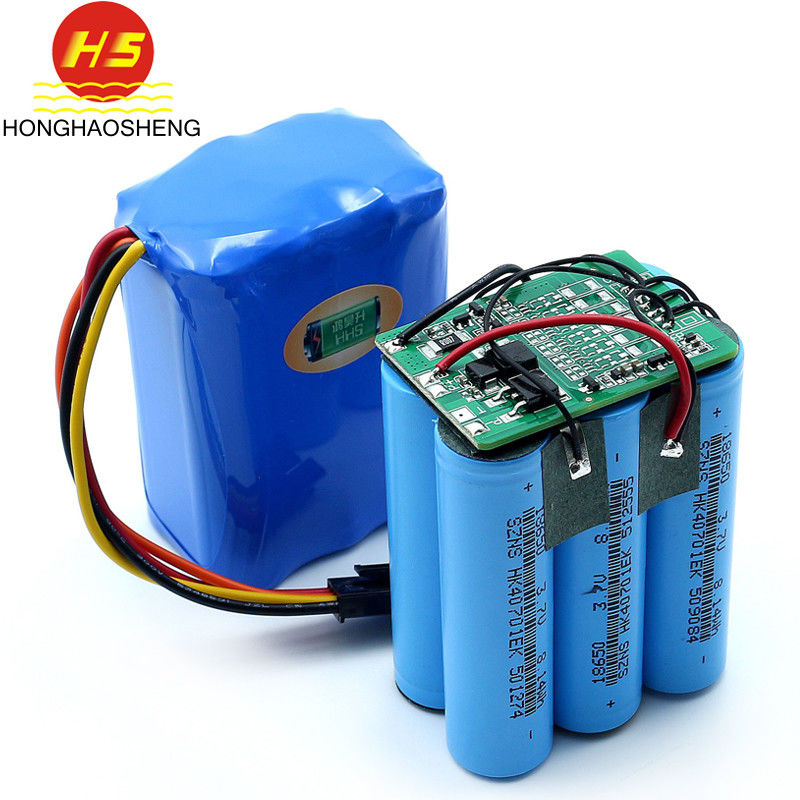

Pictures of 18650 24v 2.2ah rechargeable battery
Customized 18650 li ion battery 22.2v 24v 2.2ah lithium ion battery packs with PCB/PCM
Production sales 18650 batteries a passionate team
Why do you choose our 18650 batteries
1. Professional lithium-ion battery manufacturer for over 10 years.
2. Strong research and development team to support.
3. BMS solution come from NSK and Recoh.
4. Offer OEM and ODM service for customer small order.
5. Quickly respond and action
6. Specialed in 18650 lithium ion battery,lithium polymer battery .
7. Established quality control systems under ISO9001
18650 li-ion battery Model Table
| NO. | Model | Capacity | voltage | Size | Weight | ||
| mAh | 3.7V | T | W | L | Typical | ||
| 1 | 18650 | 2000mAh | 3.7V | 19.0mm | 19mm | 68mm | 50g |
| 2 | 18650 | 2000mAh | 3.7V | 19.0mm | 19mm | 70mm | 46g |
| 3 | 2S18650T | 4400mAh | 3.7V | 19.0mm | 19mm | 135mm | 110g |
| 4 | 2S18500 | 1400mAh | 7.4V | 19.1mm | 38mm | 53mm | 71g |
| 5 | 2S18650 | 2200mAh | 7.4V | 19.0mm | 38mm | 68mm | 110g |
| 6 | 3S18653 | 2200mAh | 11.1V | 19.0mm | 56mm | 68mm | 145g |
| 7 | 4S18650 | 2200mAh | 14.8V | 19.0mm | 75mm | 68mm | 197g |
| 8 | 6S2P18650 | 4400mAh | 24.0V | 38.0mm | 115mm | 72mm | 600g |
