Place of Origin: | Guangdong, China |
---|---|
Brand Name: | HHS |
Certification: | ce |
Model Number: | 18650 4s4p battery |
Minimum Order Quantity: | 20 - 999 Sets |
Price: | $10.00 - $40.00 |
Packaging Details: | lithium ion battery 14.8v 12Ah: 1.Carton. 2. As your requirements. |
Supply Ability: | 5000 Piece/Pieces per Month |
Application: | BOATS, Baitboat/robot | Weight: | 700g |
---|---|---|---|
Type: | Li-Ion | Product Name: | Lithium Ion Battery 14.8v 12Ah |
Cycle Life: | 500 Times | With PCM: | Yes |
Memory Effect: | No | Warranty: | 12 Months |
Packaging: | Blister Packaging | OEM/ODM: | Welcome |
Composed Type: | 4 Series 4 Parallel | Components: | NCM |
Battery Size: | T60*W70*L130mm With BMS | Port: | Shenzhen/HK |
High Light: | 4s4p RT4 bait boat lithium battery,4s4p RT4 14.8v 12Ah battery,14.8v Rechargeable Li Ion Battery |

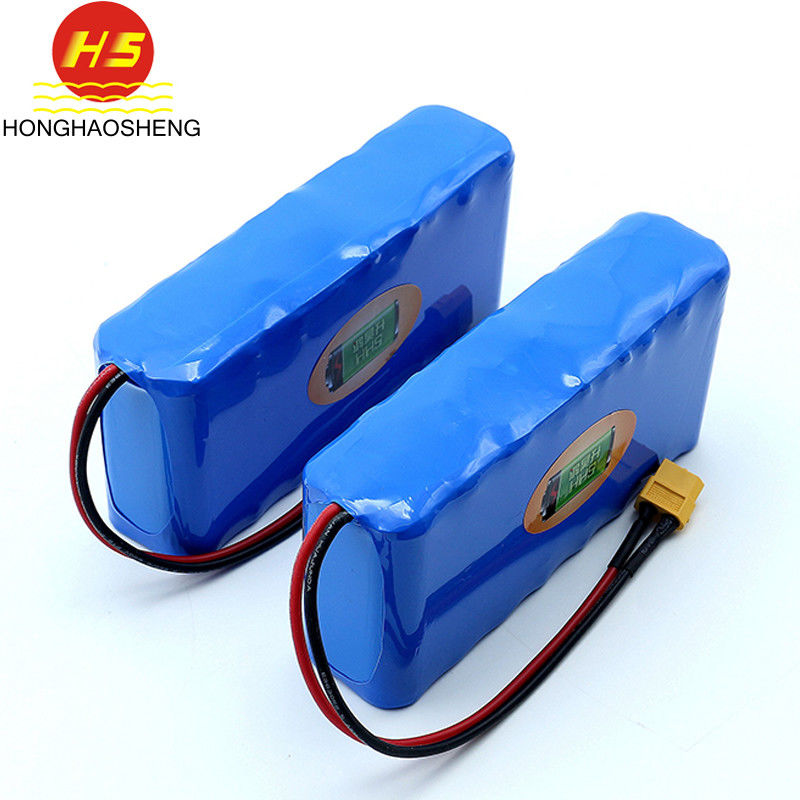

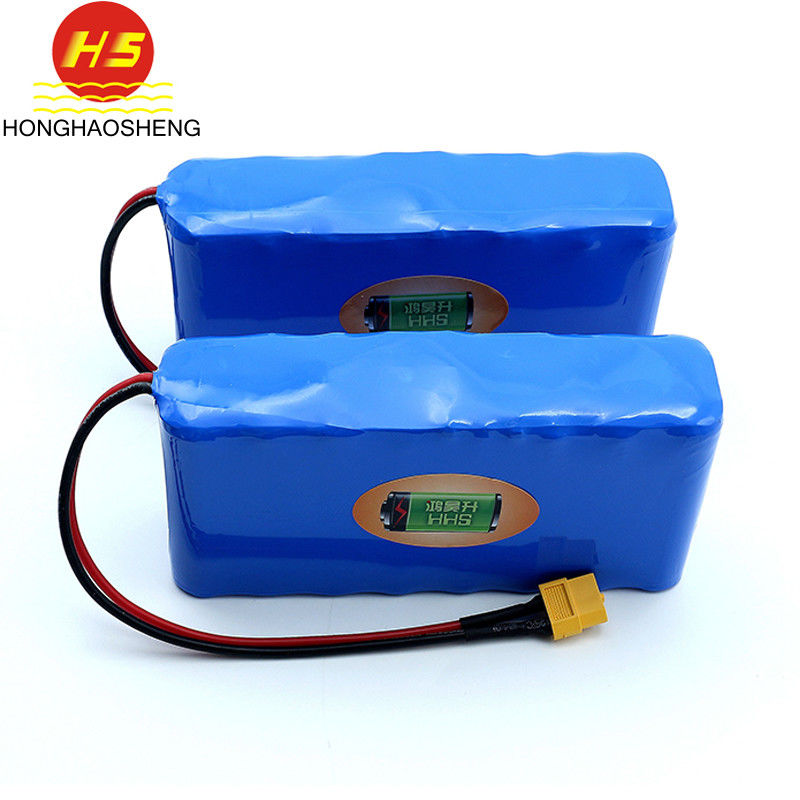

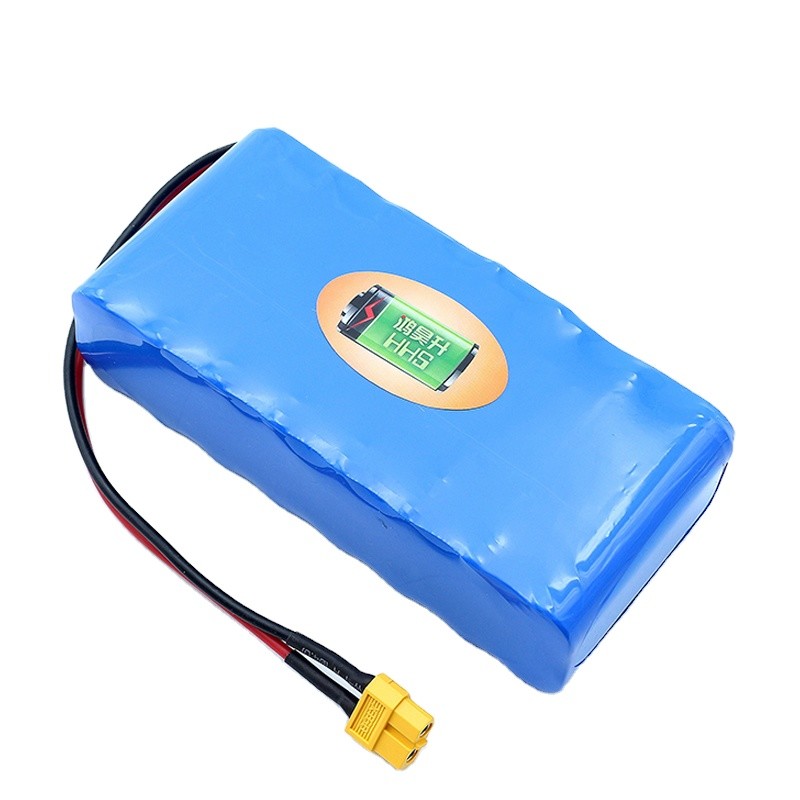

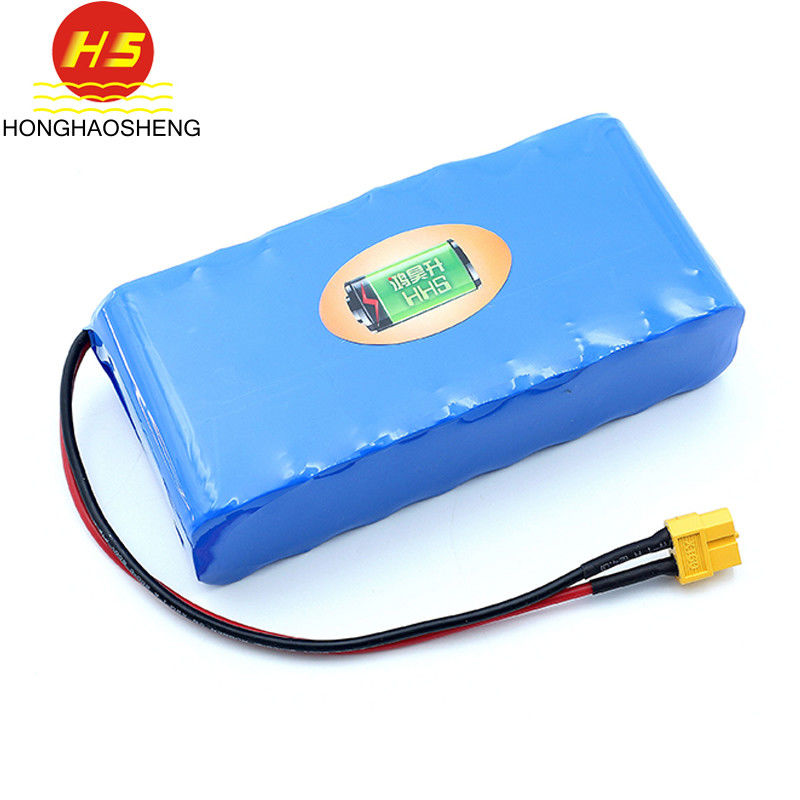

Rechargeable Li Ion Battery 4s4p RT4 Baitboat battery 14.8v 12Ah
Capacity: |
12Ah |
Nominal Voltage: |
14.8V |
Discharge Cut-off Voltage |
2.75V (single cell) |
Max Charge Voltage |
4.2±0.05V (single cell) |
Standard Charge Current |
2A/3A |
High-rate Charge Current |
5A |
Max Continue Discharge Current |
5A for 60w |
Weight |
700g |
Dimension |
customized |
Operating Temperature: | Charge: 0 ~ 45°C Discharge: -20 ~ 75°C |
Storage Temperature: | During 1 month: -5 ~ 35°C During 6 months: 0 ~ 35°C |
Full Size Sample Lead time: | As usual 3-7 working days |
Accessories | Plug/connector/lead wire/case/charger |
Standard Set | |
Capacity: | 8.8Ah/10.4Ah/11Ah/11.6Ah/20Ah |
Nominal Voltage: | 12v/24v/48v/60v/72v |
Configguration | 4s/7s/10s/13s/16s/20s |
DIMENSION | Depend on the cells, customized |
OEM/ODM | accepted |
1.Do not throw battery into water or make it wet;
2.Keep the battery away from heat source(like fire or heater);
3.Do not throw the battery into fire or heat the battery;
4.Forbid to hammer to trample the battery;
5.Forbid disassembling the battery in anyway
1.Long life, large capacity and good shock resistance
2.Low self-discharge and good discharge performance at low temperature
3.Strong charging acceptance and quick-charging capability
4.Strong over-discharge resistance and charge retention
5.Maintenance-free and no acid or water for maintenance in usage
6.Excellent large current discharge performance, and have obvious advantages in startup and climbing
7. High temperature performance
8. Environmental friendly
9. Lighter weight smaller size
10.Most safe no explosion no fire
DIMENSION:360*85*130MM | ||||||
Max Cells | Configguration | Capacity | Cycle life | |||
2.2Ah | 2.6Ah | 2.9Ah | 3.4Ah | |||
52 | 10S5P | 36V 11Ah | 36V 13Ah | 36V 14.5Ah | 36V 17Ah |
500cycle capacity>60% |
13S4P | 48V 8.8Ah | 48V 10.4Ah | 48V 11.6Ah | 18V 13.6Ah | ||
DIMENSION:360*82*132MM | ||||||
65 | 13S5P | -- | -- | 48V 14.5Ah | 48V 17Ah |
Packaging | Normal OPP bag;PVC bag;Customized box |
Carton Size | 60cm*40cm*35cm or customized,24 bags/ carton |
Gross weight | 9.0 KGS |
MOQ | 2pcs |
