Detail Information

Application:	Consumer Electronics, Bluetooth Headset	Weight:	3g
Memory Effect:	NO	Model:	200mah Li Ion Polymer Battery
Use:	Electric Tools/Solar Light,Medical Device Bluetooth,camera,GPS.etc	High Quality Control:	One By One Test Before Shipment
Condition:	100%	Good After Sales Sevice:	Can Replace For New One If There Are Quality Problem
OEM:	Accept OEM And ODM	Original:	YES
Size:	T4W20*L30 (with Pcb)	Battery Size:	Li-polymer Battery
High Light:	200mah Lithium Polymer Battery , 402030 Lithium Polymer Battery , UL lipo 402030

Product Description

UL approved 402030 200mah Lithium Polymer Battery for bluetooth headset

1). Specification

Model	200mah li ion polymer battery
Nominal voltage	3.7v
Nominal capacity	200mAh
Size	thickness × width × length (mm)
Size	4±0.5×20±0.5×30±0.5mm (with PCM)
Advantage	High energy density Safety and reliable(with PCM) Long cycle life no memory Never explosion,stable performance,environment friendly capacity and size could be customized
Weight	about 3g
Max charge current	1C
Charging method	charge with constant current 1C to 4.2v,then charge with constant voltage 4.2v, till charge current less than 0.01C
Max discharge current	1C
Discharge cut-off voltage	3v, the over-discharge detection voltage of PCM
Operating environment	Charging, 0°C ~ 45°C ; 65±20%RH
Operating environment	Discharging, -20°C~60°C ; 65±20%RH
Storage environment	-20°C~45°C
	65±20%RH
	storage for a long time(>3 months) and the storage condition shall be:<35°C;65±20%RH;
CycleLife (80% Prime Capacity) :	>600times
Charging Attention	Charging current and charging voltage should be less than specified in the Product Specification.
	The charger shall be designed to comply with Specification.
	It is dangerous that charging with higher current or voltage than Product Specification may cause damage to the cell electrical,mechanical safety performance.

Advantages:

1> Low self-discharge

2> Long cycle life

3> Dual IC chips, that can anti-shortcircuit, anti-overcharger, anti-overcurrent, anti-overload

4> dimension and capacity can be customed according to your requirement.

5> with qulity warranty

6> applied to tablet pc,laptop,electronical tools and so on

7> CE/ROSH/SGS/UL/MSDS/UN38.3 standard

8> super low internal resistance and fast charging

Aplications:

1. Telecommunication: cellular phone, web phone, interphone, Bluetooth earphone.

2. Portable office devices: Notebook, PDA, portable electrograph, portable printer.

3. Video devices: GPS, digital camera, camcorder, portable DVD, portable television, MP3, MP4.

4. Portable exchange devices: POS, Handy, Fingerprint machine, portable stock machine.

5. Illuminate devices: miner lamp, searchlight.

6. Others: toys, models.

Pictures:

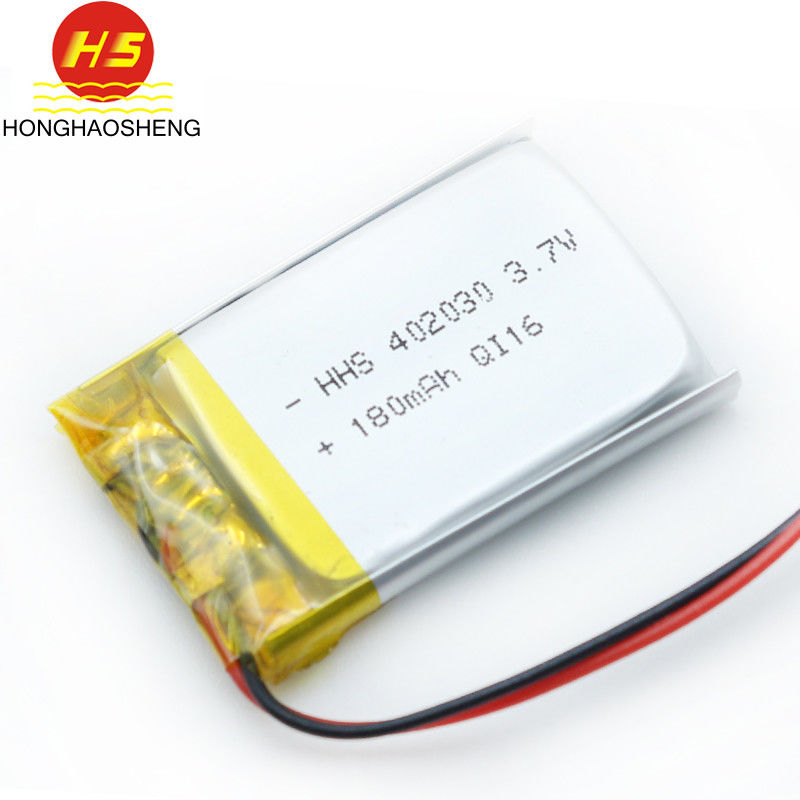

UL 200mah Lipo 402030 Lithium Polymer Battery 0

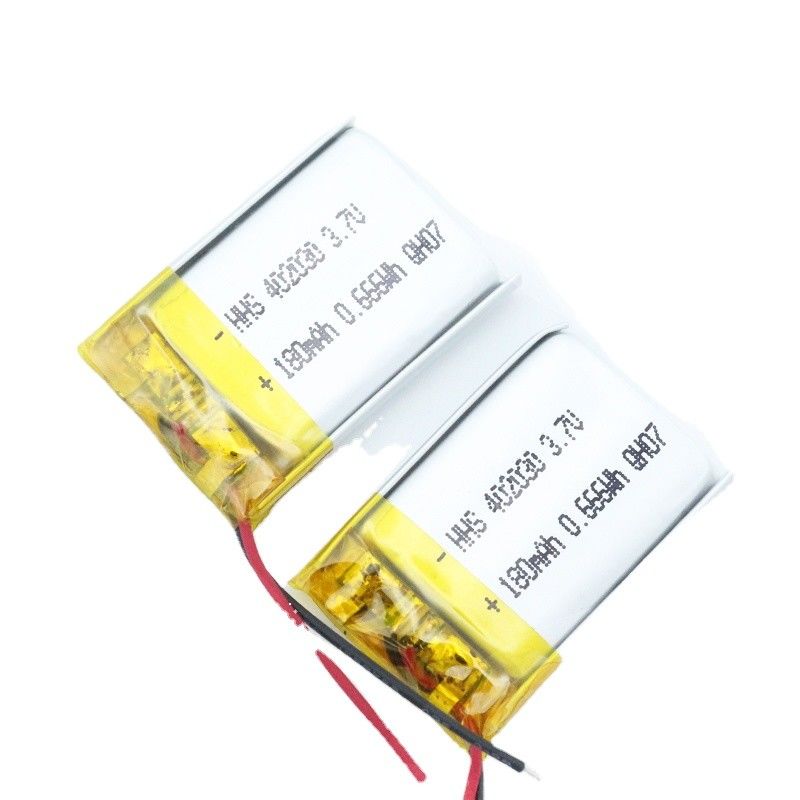

UL 200mah Lipo 402030 Lithium Polymer Battery 1

Delivery:

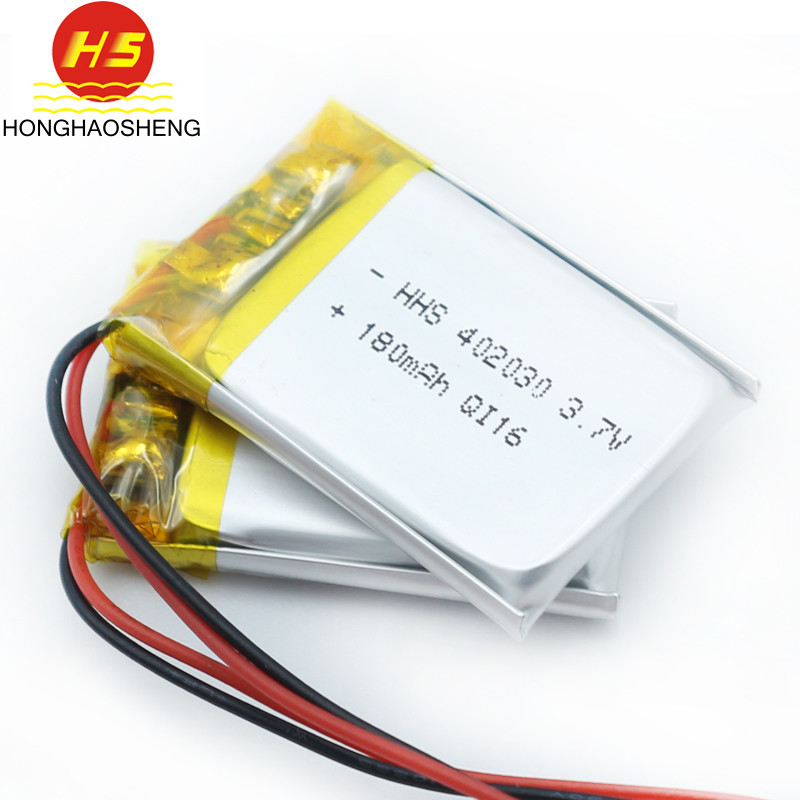

UL 200mah Lipo 402030 Lithium Polymer Battery 2

Other Battery Packs from our factory:

Tag:

Place of Origin:	Guangdong, China
Brand Name:	HHS_li-ion battery
Certification:	CE UN38.3 Rohs,MSDS
Model Number:	200mah li ion polymer battery

Minimum Order Quantity:	100 - 4999 Pieces
Price:	$0.50 - $2.00
Packaging Details:	blister ro as your requirement
Supply Ability:	100000 Piece/Pieces per Week 200mah li ion polymer battery

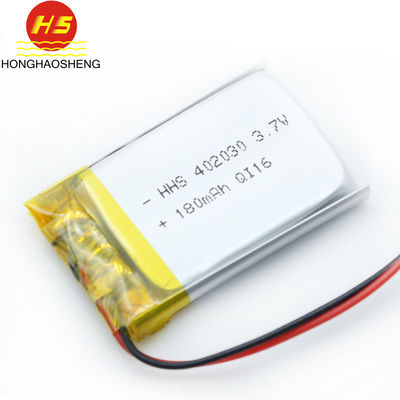

UL 200mah Lipo 402030 Lithium Polymer Battery

200mah Lithium Polymer Battery
