| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | HHS |
| Certification: | ce |
| Model Number: | 606090 |
| Minimum Order Quantity: | 100 - 9999 Pieces |
| Price: | $0.60 - $1.60 |
| Packaging Details: | blister or as your requirement |
| Supply Ability: | 5000 Piece/Pieces per Day 4000mah(3.7v) 14.8wh |
| Application: | Consumer Electronics, Tablet Pc | Weight: | 40g |
|---|---|---|---|
| Type: | Li-polymer | Model: | 4000mah(3.7v) 14.8wh |
| Cycle Life: | More Than 500times | Warranty: | One Year, 1year |
| Certificate: | CE, ROHS ,UN38.3 REACH | Payment Term: | T/T Paypal/Western Union |
| Shipping Way: | UPS / TNT / FEDEX /DHL | Sample: | Accepted |
| Battery Size: | 6.3*60*92mm | Port: | Sz |
| High Light: | rechargeable battery 3.7 v 4000mah,606090 Tablet Lithium Battery,14.8wh Tablet Lithium Battery |
||
Tablet pc Lithium Polymer Battery 4000mah 3.7v 14.8wh 606090 lipo battery
| Name | 606090 Lithium Polymer Battery 6000mah Rechargeable |
| Model | HHS 606090 |
| Size | Thickness × Width × Length (mm) |
|
6±0.5×60.0±0.5×90 ± 0.5 |
|
| Nominal voltage | 3.7V |
| Nominal capacity | 4000mAh |
| Max charge current | 1C |
| Charging method | charge with constant current 1C to 4.2V, then charge with constant voltage 3.0V till charge current is less than 0.01C |
| Max discharge current | 1C |
| Discharge cut-off voltage | 3.0 V, the over-discharge detection voltage of PCM |
| Operating environment | Charging, 0°C ~ 65°C ; 65±20%RH |
| Discharging, -20°C~80°C ; 65±20%RH | |
| Storage environment | -20°C~45° |
| 65±20%RH | |
| storage for a long time(>3 months) and the storage condition shall be:<35°C;65±20%RH;3.7~3.9V | |
| CycleLife(80%Prime Capacity) : | >500times |
| warranty | Period of warranty:12 months after sales |
| Identification |
With protection board PCM for over charging, over discharging,short circut,over voltage. |
| *Using the charger designated by the manufacture(AEC). | |
| *Don't throw the battery in fire or heat it. | |
| *Don't short-circuit. | |
| *Don't unpack the battery or change its structure. | |
| Pack design | * Battery pack should have sufficient strength and battery should be protected from mechanical shock |
| * No cell movement in the battery pack should be allowed. | |
| * No Sharp edge components should be inside the pack containing the battery. | |
| Charging | Charging current and charging voltage should be less than specified in the Product Specification. |
| The charger shall be designed to comply with Product Specification. | |
| It is dangerous that charging with higher curren or voltage than Product Specification may cause damage to the cell electrical,mechanical safety performance. |
2. Spotlight

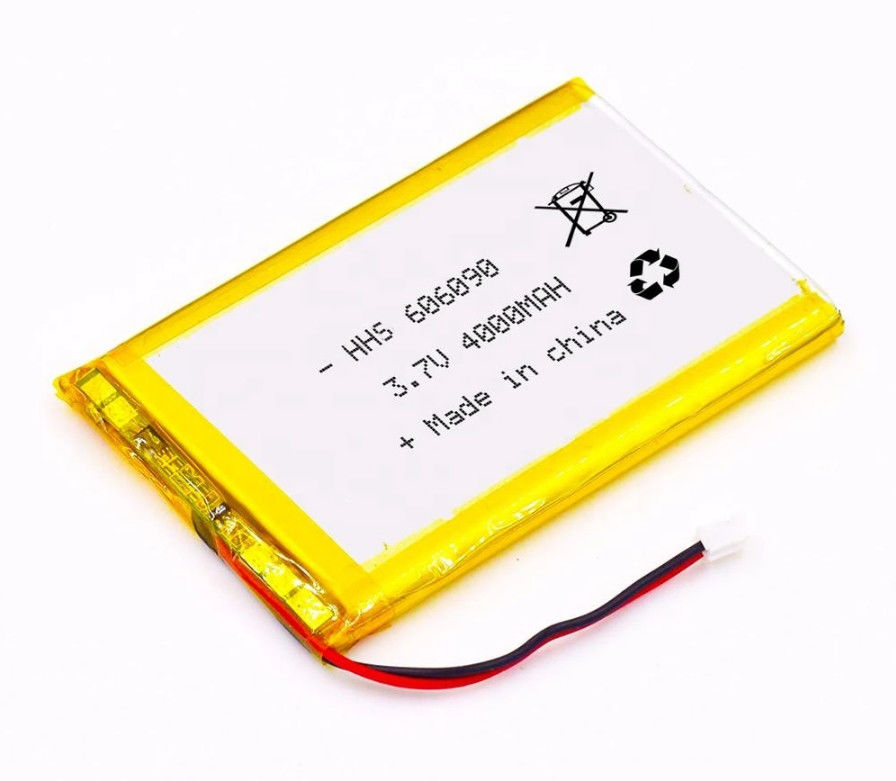

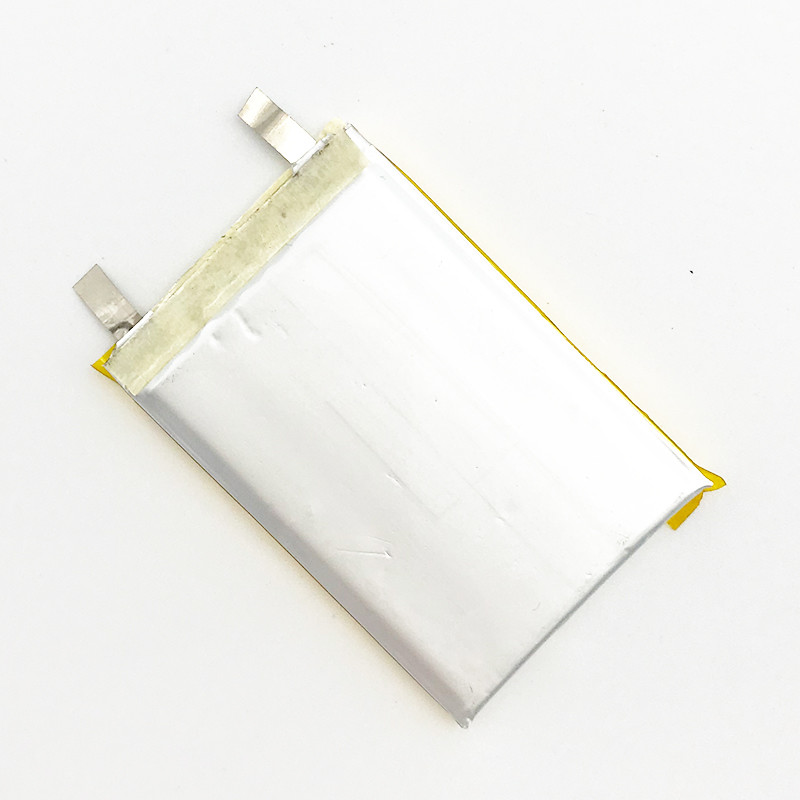

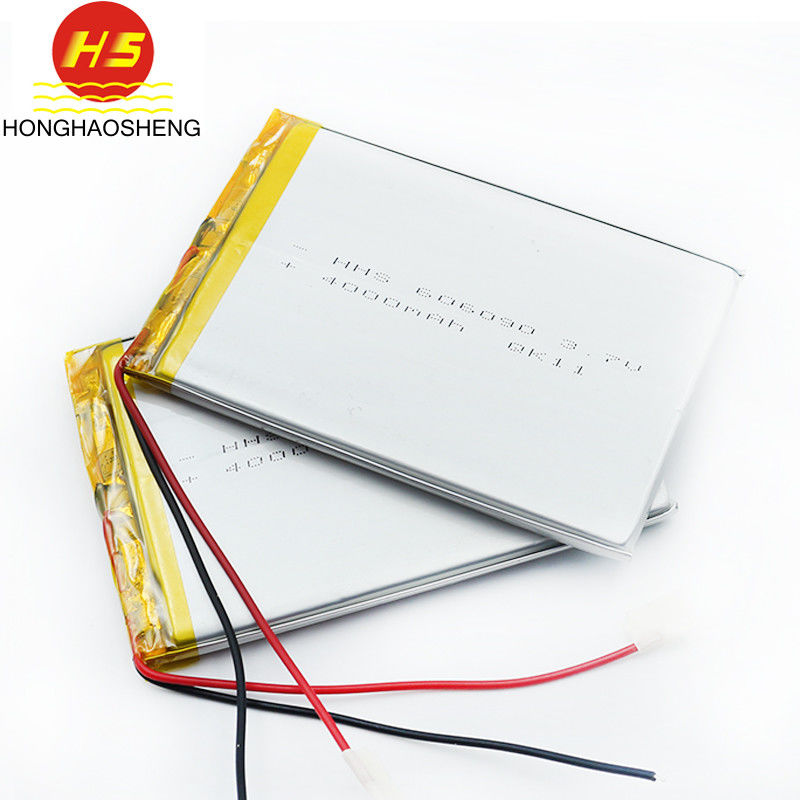

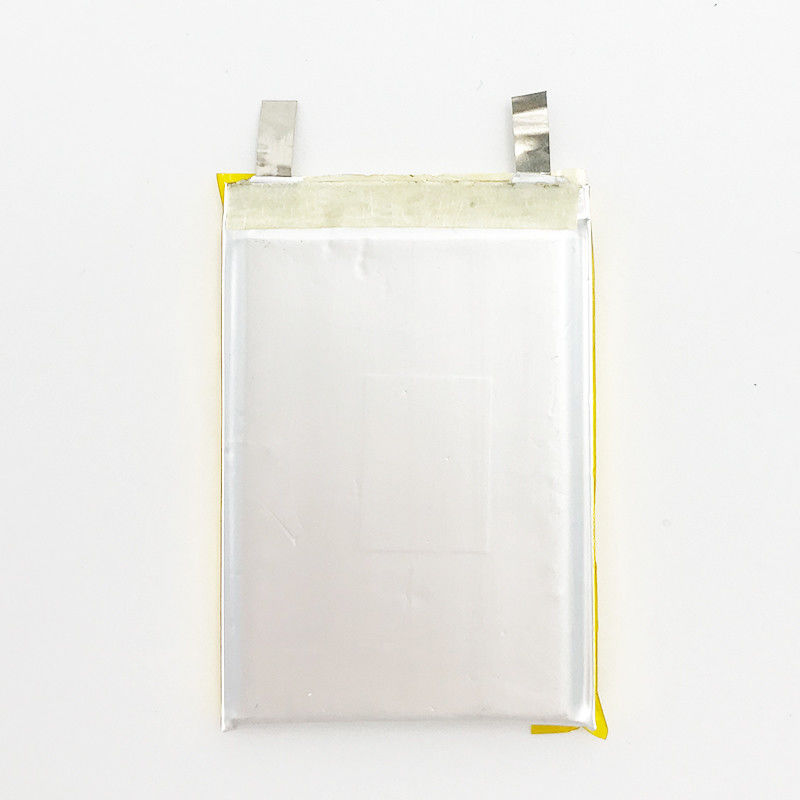

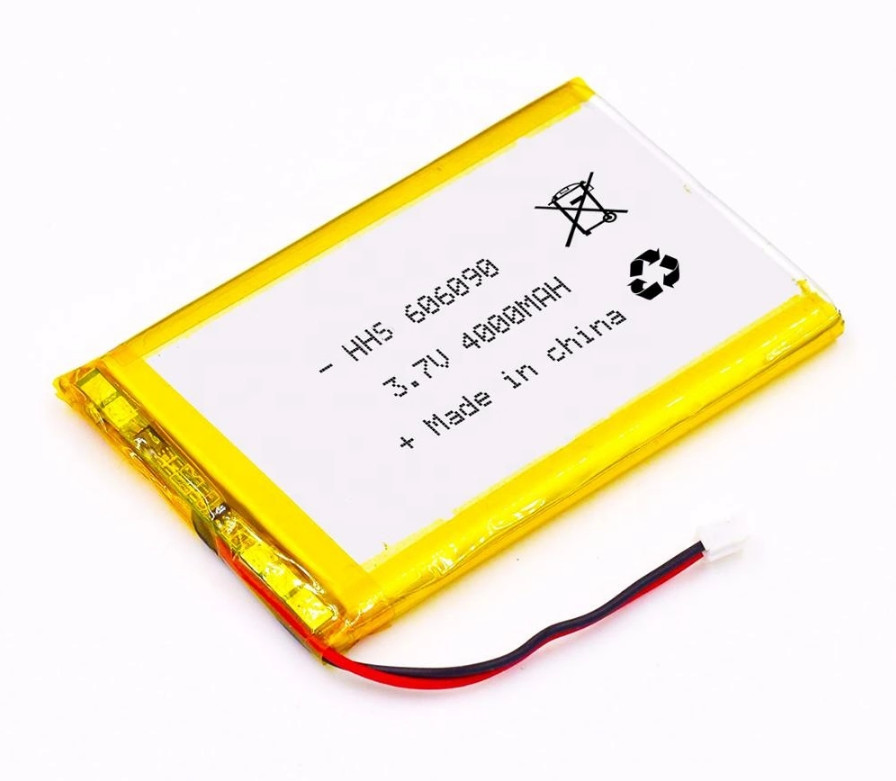

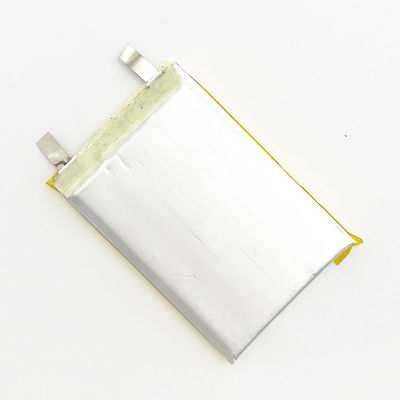

3. Pictures of 4000mah(3.7v) 14.8wh
4. Delivery and Package
One step :use antistatic bag to protect battery
Two step: filling with sponge
Three step:close the box and make it stable
Or according to your demand.
5. Order process
1> After we comfirmed the battery you want,we'll give you the price
2> Price agreed then we'll make preform invoice for you to make payment(TT/Paypal/Western Union accept
3> Payment finished then we'll start production,then 7-10 day,the goods will be sent out
4> Then 5-7 days,the battery will arrive at your door,order finished
6. Why do you choose us?
1. Professional lithium-ion battery pack for over 10 years,have own factory.
2. Strong R&d team to support.
3. Provide best brand cell.
4. BMS solution come from NSK and Recoh.
5. Offer OEM service for customer small order.
6. Quick action & respond.
7. competitive price and best sales and after-sales sevice.
