| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | HHS |
| Certification: | CE, ROHS ,UL ,UN38.3 REACH . |
| Model Number: | 18650 Battery Packs |
| Minimum Order Quantity: | 10 - 499 Pieces |
| Price: | $18.00 - $168.00 |
| Packaging Details: | paper carton or customized or wood case |
| Supply Ability: | 2000 Piece/Pieces per Day 12 lithium batteries |
| Application: | Power Tools, Solar Energy Storage Systems, Medical Equipment | Weight: | 4.2kg |
|---|---|---|---|
| Type: | Li-Ion | Nominal Voltage: | 12V |
| Componentts: | Li Mn2O4 Li(Ni Co Mn | Application: | Solar System,Medical Equipment |
| MOQ: | 10 Pcs | Shippment: | UPS , DHL,TNT,Fedex |
| Delivery Time: | 7-14 Days After Confirm Order | Warranty: | Full 24 Months |
| OEM/ODM: | Accepted | Size: | T78*W112*H278mm |
| Battery Size: | T78*W112*H278mm | Port: | SZ/HK |
| High Light: | Diy 18650 Battery Pack 12v 60A,HHS diy 12v lithium ion battery pack,LiMn2O4 Li Battery Pack |
||
Medical Lithium Battery 60A 12v electric rechargeable battery
12 v electric lithium rechargable battery
|
NO. |
Items |
units |
Specifications |
Remark
|
|
|
1 |
Max. charge voltage |
V |
15V |
|
|
|
2 |
Min. discharge voltage |
V |
8.4V |
|
|
|
3 |
Max. continuation charge current |
mA |
10A |
|
|
|
4 |
Max continuous discharge current |
mA |
60A |
150A:≤5mS |
|
|
5 |
Standardenvironment |
temperature |
°C |
25±5°C |
|
|
Humidity |
RH |
45-75%RH |
|
||
|
6 |
Operating tempe rature |
Charging |
°C |
0~45°C |
|
|
Discharging |
°C |
-20~+60°C |
|
||
|
7 |
Charging time |
standard charge |
H |
13.0H |
5A |
|
quick charge |
H |
7.0H |
10A |
||
|
8 |
About Weight |
g |
4.2kg |
|
|
|
9 |
Outgoing voltage |
V |
10.8V-12.6V |
|
|
Pakc Rechargeable Deep Cycle 60ah 12v Lithium ion Battery PCM specification:
|
Items |
Symbol |
Content
|
Criterion
|
|
Over charge Protection |
VDET1 |
Over charge detection voltage |
4.25±0.035V |
|
tVDET1 |
Over charge detection delay time |
600ms max |
|
|
VREL1 |
Over charge release voltage |
4.10±0.1V |
|
Power balance |
VBU |
Detection voltage ofthepower balance
|
4.175±0.035V |
|
tVBU |
Start-up delay timeinabalancedway |
800ms max |
|
|
VBL |
Power balance release voltage |
4.175±0.035V |
|
|
IB |
The 4.15Vpowerbalancecurrent 4.15V |
43±9mA |
|
|
Over discharge protection |
VDET2 |
Over discharge detection voltage |
2.8±0.08V |
|
tVDET2 |
Over discharge detection delay time |
600ms max |
|
|
VREL2 |
Over discharge release voltage |
2.9±0.10V |
|
|
Over current protection
|
IDP |
Over current detection current |
180±30A |
|
tVDET3 |
Detection delay time |
3s MAX |
|
|
|
Release condition |
Cut load
|
|
|
Short protection |
|
Detection condition |
Exterior short circuit
|
|
TSHORT |
Detection delay time |
3ms MAX |
|
|
|
Release condition |
Cut short circuit
|
|
|
Interior resistance |
RDSB |
Main loop electrify resistance |
VC≥11.1V,RDS≤20mΩ |
Shipping terms:
1.Samples checking: sending by Express ( DHL / UPS / FEDEX / TNT ,by air)
2.Bulk production: sending out by cargo shipping / air freight / Express
Product Advantages:
1) Green product
2) Long standby time
3) One year warranty
4) Excellent safety performance
5) Excellent storage performance and low self-discharge rate
6) Short circuit testing passed
7) Overcharge testing passed
8) Over discharge testing passed
Major Application:
1) Portable equipment: Laptop, camcorder, PDA, digital camera, portable DVD etc.
2) Military equipment: IR telescope
3) Medical devices
4) Power tools
Safety Precaution:
1.Do not throw battery into water or make it wet;
2.Keep the battery away from heat source(like fire or heater);
3.Do not throw the battery into fire or heat the battery;
4.Forbid to hammer to trample the battery;
5.Forbid disassembling the battery in anyway

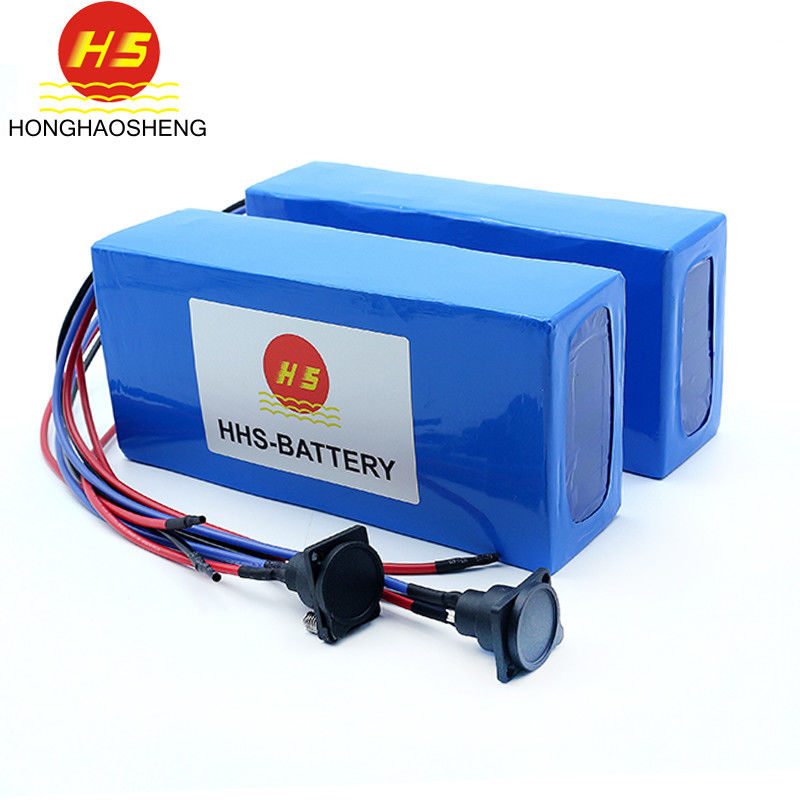

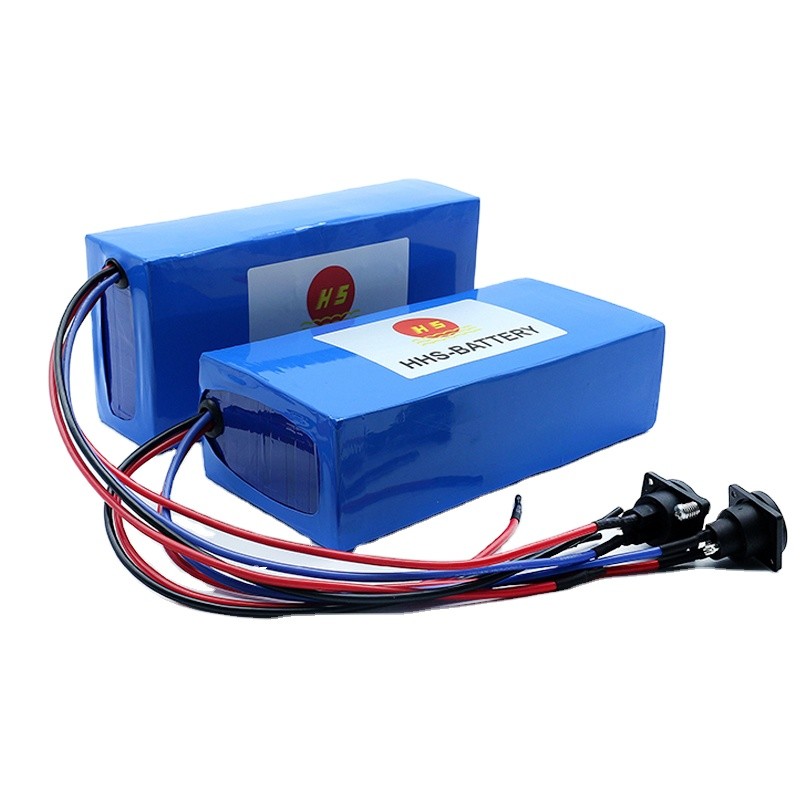

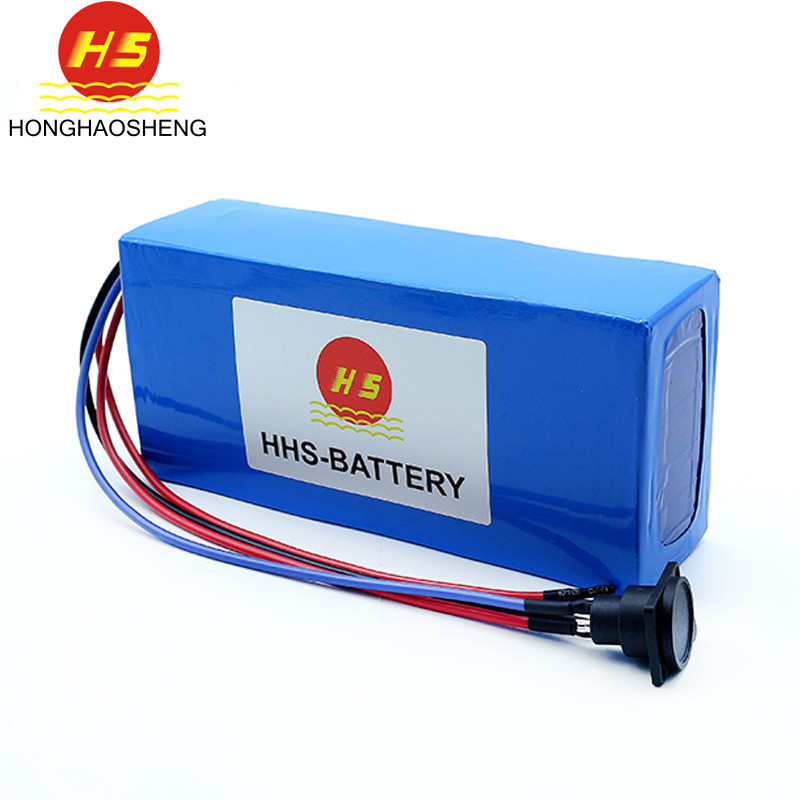

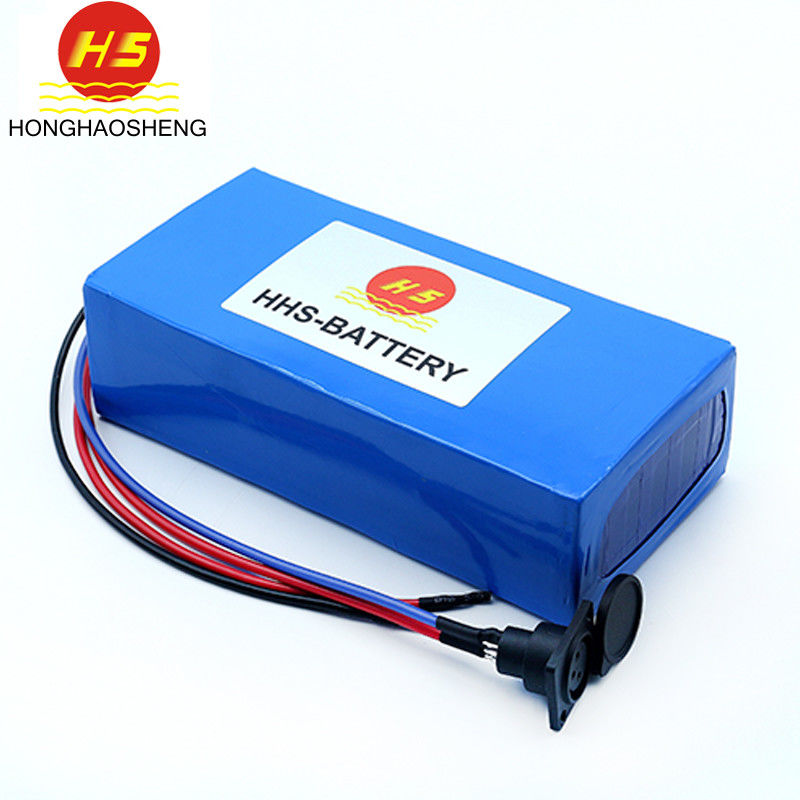

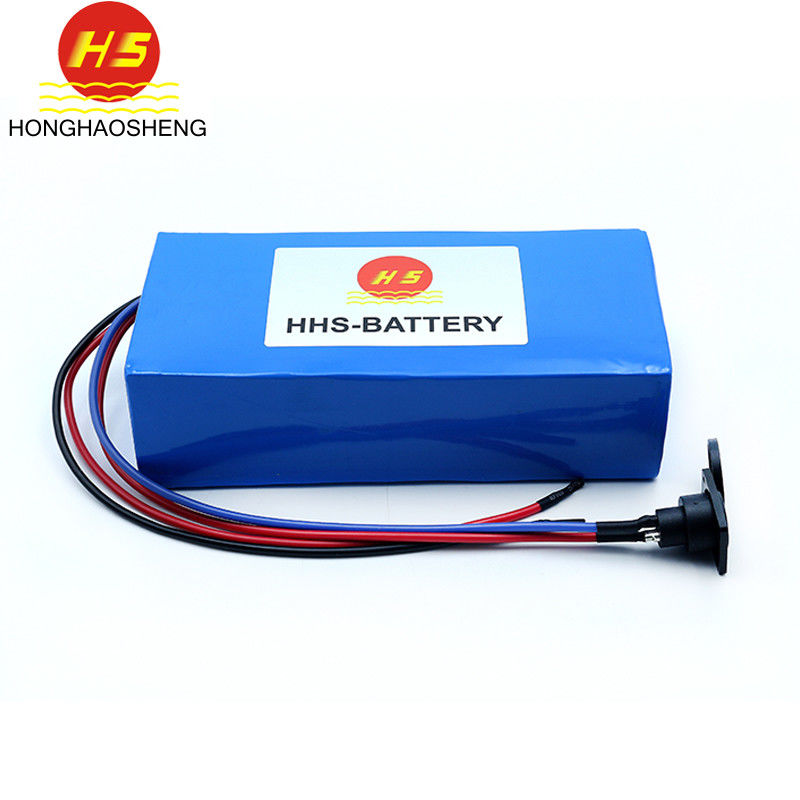

Product pictures :
About us:
1.Professional lithium-ion battery pack for over 10 years,have own factory.
2.Strong R&d team to support.
3.Provide best brand cell
4.BMS solution come from NSK and Recoh.
5.Offer OEM service for customer small order.
6.Quickly action & respond.
7.Best sale service and good price.
Warmly welcome your inquiry for our different capacity and different size.
