| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | HHS |
| Certification: | ce/ul/kc/msds/un38.3 |
| Model Number: | M26,MH1,MJ1,30Q, B3400,BD3200,PF, F1L |
| Minimum Order Quantity: | 100 - 4999 Units |
| Price: | 3.14 |
| Packaging Details: | Standard package or according to customers' demands for Lifepo4 Cylindrical Battery Cells |
| Supply Ability: | 600000 Unit/Units per week 32650 Li-Ion Best Price Rechargeable Battery |
| Type: | LiFePo4 Rechargeable Battery | Charge Voltage: | 3.65V |
|---|---|---|---|
| Capacity: | 5000mAh | Weight: | 145g |
| Internal Resistance: | ≤10mΩ | Cycle Life: | 2000 Times |
| High Light: | 5000mAh LiFePO4 Cylindrical Cells,19.2Wh LiFePO4 Cylindrical Cells,32700 Lifepo4 Cells |
||

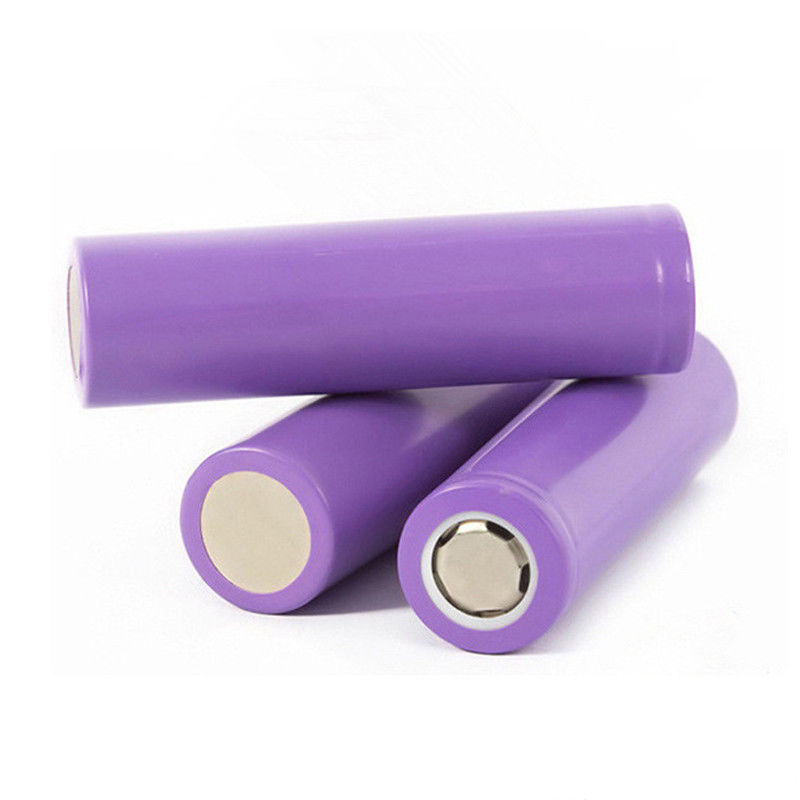

High Capacity 19.2Wh 5000mAh LiFePO4 Cylindrical Cells 32700 32650
High Capacity 3.65V 5000mAh LiFePO4 Cylindrical Cells 32700 32650
High Capacity 32700 32650 3.65V 5000mAh LiFePO4 Cylindrical Cells
Feature
1. Safety: The safest lithium battery, CE UL certification, built-in PCM/BMS
2. Clean and green energy, free of toxic substances
3. Long life cycle: >2000 times, 6-8 times that of lead-acid batteries
4. No memory effect, high efficiency, charging at any time
5. Small size and light weight: 1/2 of the volume and weight of lead-acid batteries
6. Good high temperature performance
7. Low self-discharge rate: <3% per month
Features of LiFePO4 Cylindrical Cells:
| Electrical Characteristics | Nominal Voltage | 3.2V |
| Nominal Capacity | 6Ah | |
| Energy | 19.2Wh | |
| Internal Resistance | ≤10mΩ | |
| Cycle Life | >2000 cycles@1C 100% DOD | |
| Months Self Discharge | <3% | |
| Efficiency of Charge | 100%@0.5C | |
| Efficiency of Discharge | 96-99% @1C | |
| Standard Charge | Charge Cut-off Voltage | 3.65V |
| Charge Mode | 0.2C to 3.65V, then 3.65V charge current to 0.02C(CC/CV) | |
| Recommend Charge Current | 2A | |
| Max. Charge Current | 6A | |
| Standard Discharge | Max. Continuous Discharge Current | 6A |
| Max. Pulse Current | 18A(10S) | |
| Discharge Cut-off Voltage | 10V | |
| Environmental | Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
| Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity | |
| Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity | |
| Water Dust Resistance | IP54 | |
| Dimensions(in./mm.) | 32*70mm | |
| Weight(lbs./kg.) | 145g | |
| Display screen | Optional | |
| Bluetooth | Optional |
FAQ
1. How long is the delivery time?
Sample: 3-5 days Bulk order: depends on quantity Please help check with our sales team. :-)
2. What about the warranty?
12 months
3. How about the shipping cost?
By sea/air/express, or you can have your own freight forwarder. We ship samples or small batches by air express, such as DHL, FedEx, UPS, TNT, direct line, etc.
4. Are there samples? Yes, of course, sample orders are welcome!
5. What certificate does the battery pack have?
Many of our batteries have passed CE/RoHS/MSDS/UN38.3/CE/IEC62133 certification
6. Can I get a discounted price?
Yes, the price can be adjusted according to the quantity.
7. Have you participated in foreign exhibitions?
Yes it is. In recent years, we went to CES in Las Vegas, Electronica in Munich, Battery Show in Detroit, CeBIT in Hanover, Interbike in Las Vegas, etc.
8. Do you export goods to EU/South America/U.S.? and many more. ?
Yes, these are our main markets. If you need more detailed information, please feel free to contact me.
9. How can I go to the factory?
Since 2004, the HHS factory is located in Shenzhen, Guangdong Province, China. It is only half an hour's drive from Shenzhen Airport. It is an hour's drive from Guangzhou.
