products

E Bicycle 36v 20Ah 240W Custom Lithium Battery Packs

Basic Information
Place of Origin: Guangdong, China
Brand Name: HHS
Certification: CE/RoHS/UN38.3/MSDS
Model Number: 18650 10s8p battery
Minimum Order Quantity: 10 - 99 Pieces
Price: $120.00 - $220.00
Packaging Details: 240w Lithium Battery 36v 20Ah: 1. Carton 2. as your requirements.
Supply Ability: 5000 Piece/Pieces per Day
Detail Information
Application: Electric Bicycles/Scooters, Electric Wheelchairs, Assisted Foldable Electric Bicycle, E-bike/golf Cart Weight: 4.5kg
Charge Cut Off Voltage: 42V Discharge Cut Off Voltage: 30V
Warranty: 12 Months Cycle Life: 500 Times
Color: Black/silvery Payment: Paypal.TT.LC.Western Union
Battery Type: 240w Lithium Battery 36v 20Ah Size: T70*W180*L220mm ( Case )
Battery Size: Li-Ion Port: Shenzhen/HK
High Light:

240W Custom Lithium Battery Packs

,

36v 20Ah Custom Lithium Battery Packs

,

HHS 36v 20ah ebike battery


Product Description

Custom Lithium Battery Packs 36v 20Ah For Electric Bicycle 240W



   HHS   What is the Details of our lithium ion battery?



Capacity:

20Ah

Nominal Voltage:

36V

Discharge Cut-off Voltage

2.75V (single cell)

Max Charge Voltage

4.2±0.05V (single cell)

Standard Charge Current

2A/3A

High-rate Charge Current

5A

Max Continue Discharge Current

10A for 250w ( reference )

Weight

4KG with case

Dimension

depends on the case

Operating Temperature: Charge: 0 ~ 45°C  Discharge: -20 ~ 75°C
Storage Temperature: During 1 month: -5 ~ 35°C During 6 months: 0 ~ 35°C
Full Size Sample Lead time: As usual 3-7 working days
Accessory Plug/connector/lead wire

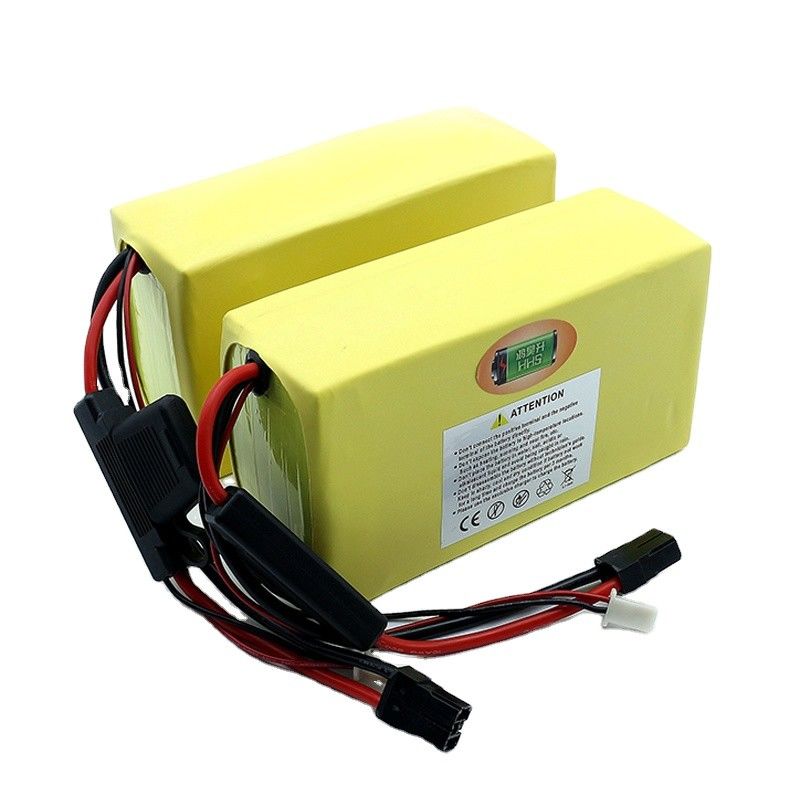

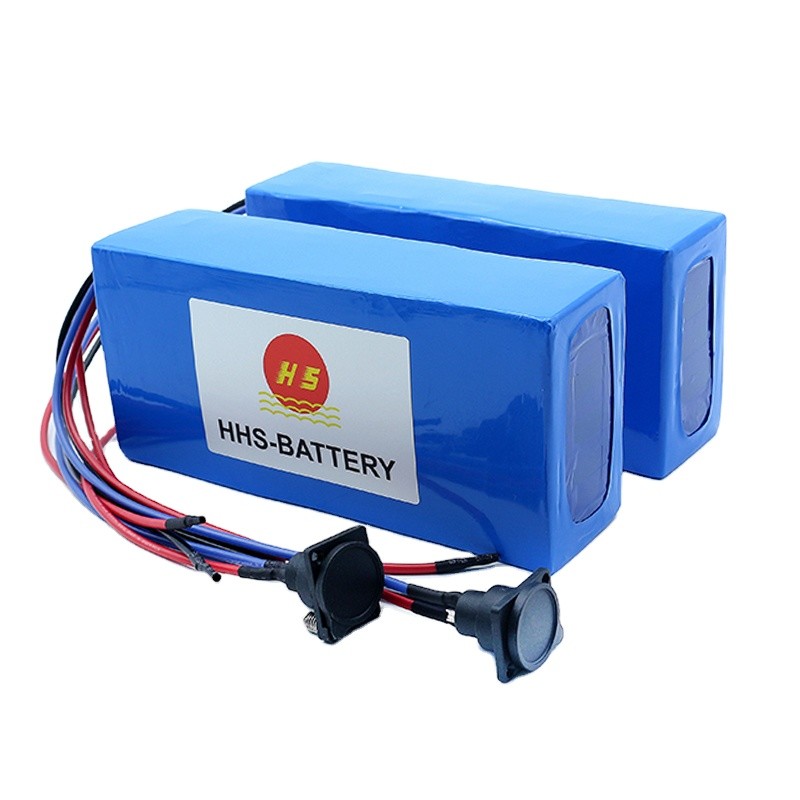

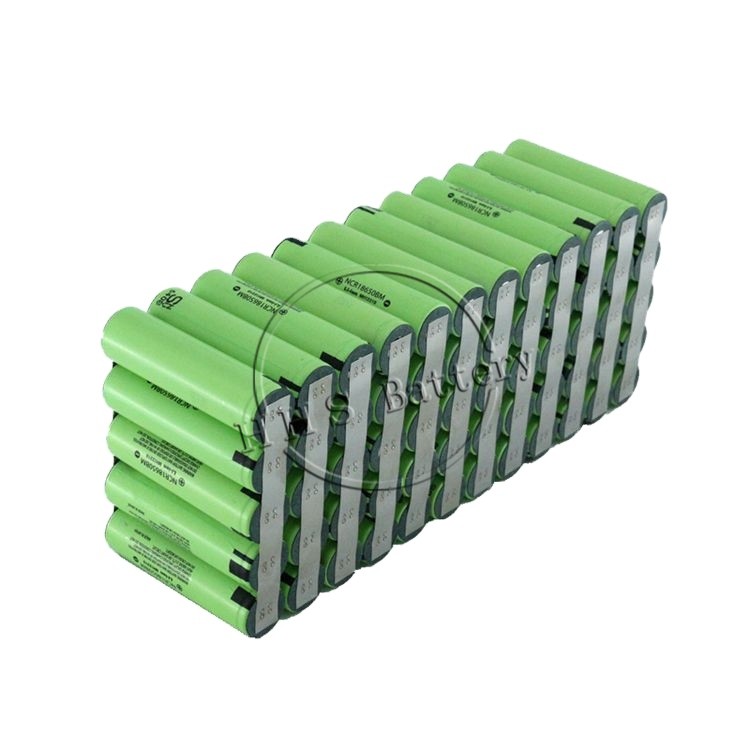

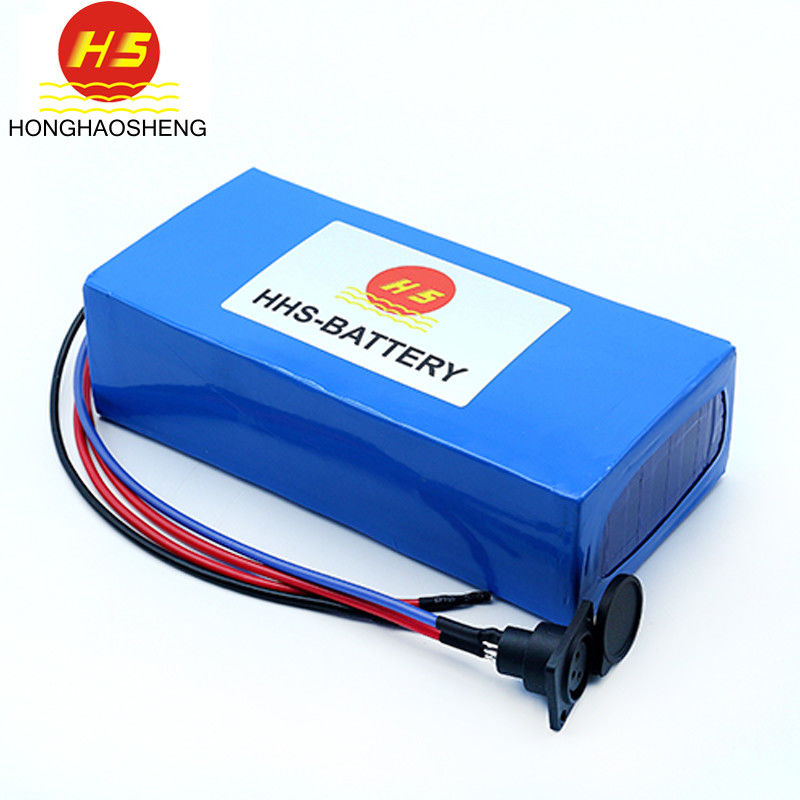

Product Picture
Product Features
   HHS   Product Features



Standard Set
Capacity: 8.8Ah/10.4Ah/11Ah/11.6Ah/20Ah
Nominal Voltage: 12v/24v/48v/60v/72v/96v
Configguration 4s/7s/10s/13s/16s/20s
DIMENSION Depend on the cells, customized
OEM/ODM accepted



   HHS   Warning

1. Do not throw battery into water or make it wet;
2. Keep the battery away from heat source(like fire or heater);
3. Do not throw the battery into fire or heat the battery;
4. Forbid to hammer to trample the battery;
5. Forbid disassembling the battery in anyway



Why Choose Us
   HHS   Why Choose Us



1. Long life, large capacity and good shock resistance

2. Low self-discharge and good discharge performance at low temperature

3. Strong charging acceptance and quick-charging capability

4. Strong over-discharge resistance and charge retention

5. Maintenance-free and no acid or water for maintenance in usage

6. Excellent large current discharge performance, and have obvious advantages in startup and climbing

7. High temperature performance

8. Environmental friendly

9. Lighter weight smaller size

10. Most safe no explosion no fire

Related Item

   HHS   Related Items

DIMENSION:360*85*130MM
Max Cells  Configguration  Capacity Cycle life
2.2Ah 2.6Ah 2.9Ah 3.4Ah
 52  10S5P  36V 11Ah 36V 13Ah  36V 14.5Ah  36V 17Ah





  500cycle

capacity>70%



13S4P  48V 8.8Ah  48V 10.4Ah  48V 11.6Ah 48V 13.6Ah
                              DIMENSION:360*82*132MM
65 13S5P  -- --  48V 14.5Ah  48V 17Ah



   HHS   INSPECTION PROCESS





E Bicycle 36v 20Ah 240W Custom Lithium Battery Packs 0



   HHS   PACKING AND SHIPPING




Packaging Normal OPP bag;PVC bag;Customized box
Carton Size 60cm*40cm*35cm or customized,24 bags/ carton
Gross weight 9.0 KGS
MOQ 2pcs for sample
E Bicycle 36v 20Ah 240W Custom Lithium Battery Packs 1



Factory Show
   HHS   FACTORY SHOW(Click below photo to see more)





E Bicycle 36v 20Ah 240W Custom Lithium Battery Packs 3



FAQ

FAQ


  • QWhat is the MOQ ?
  • A2 pcs
  • QCan I mix different designs?
  • ASure!
  • QCan I get a lower price if I order large quantities?
  • AYes, cheaper prices with more bigger size orders.
  • QCan I add or delete items from my order if I change my mind ?
  • AYes, but you need to tell us asap. If your order has been done in our production line, we cannot change
    .
  • QCan I get the pre-production sample ?
  • AYes, we will send you pp sample, after you confirm, then we will start production.
  • QWhen you ship my order?
  • ANormally 3-5days after receiving your payment, but it can be negotiated based on order qty and production schedule.
  • QHow about the quality guarantee period?
  • AOne year!
  • QHow can you guarantee the production quality ?
  • AOur production quality follow ISO9001 standard . We have 13years experience of QC team. We have strictly quality control system in our production process. We have 4 times inspection for each finished product before package Third part inspection accepxable.
