| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | HHS |
| Certification: | CE/ROSH/MSDS/UN38.3 |
| Model Number: | HHS18650 |
| Minimum Order Quantity: | 10 - 99 Packs |
| Price: | $86.00 - $286.00 |
| Packaging Details: | our standard blister package or as your requirement |
| Supply Ability: | 300000 Piece/Pieces per Month electric kids cars 24v |
| Application: | Electric Bicycles/Scooters, Electric Kids Cars | Weight: | 7kg |
|---|---|---|---|
| Type: | Li-ion | MOQ: | 1 Pack |
| Lead Time: | 5-7 Days | Components: | Li-ion |
| Composed Type: | Other | Battery Size: | Customized |
| High Light: | HHS 24v 40ah AGV Battery,Customized HHS AGV Battery,18650 HHS Lithium Ion AGV Battery |
||

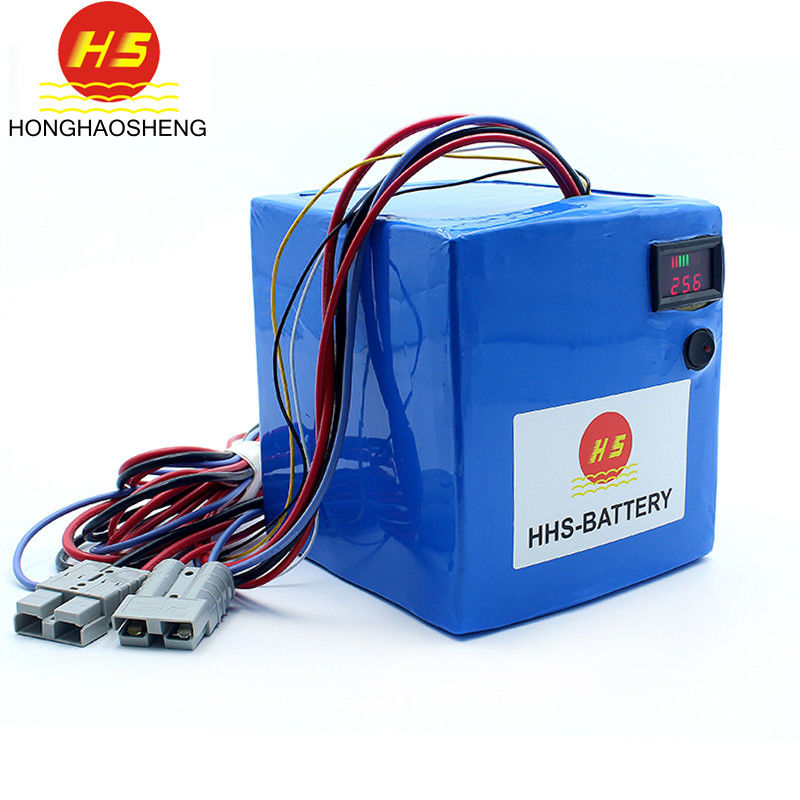

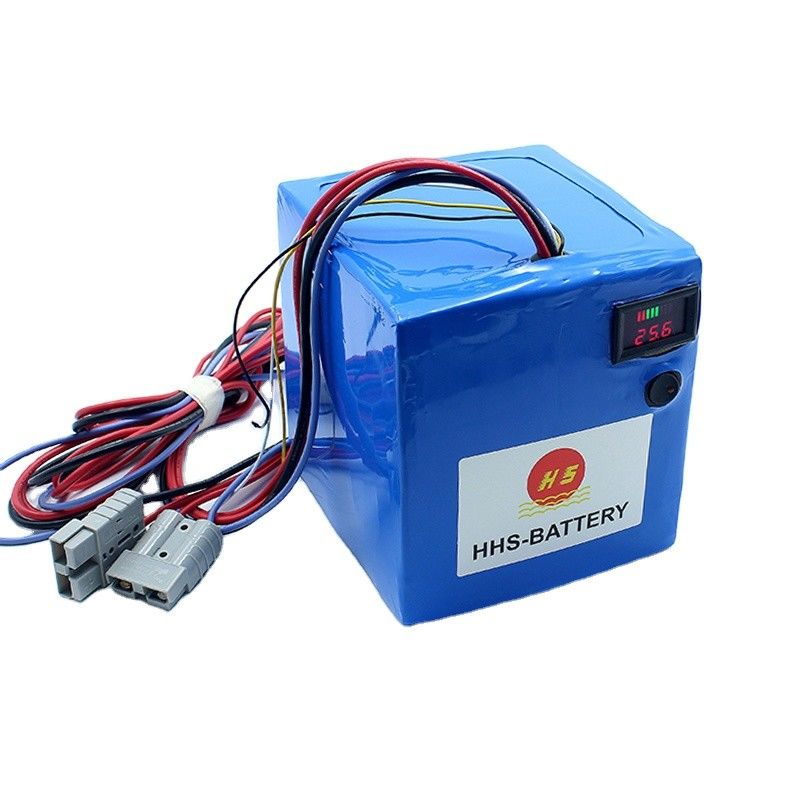

AGV Battery 24v 40ah Lithium Ion Battery Pack electric kids cars
| Model | HHS18650 |
| Nominal voltage | 24v |
| Nominal capacity | 240ah |
| Size | thickness × width × length (mm) |
| 108±0.5×210±0.5×545±0.5mm (with PCM) | |
| Advantage |
|
| Weight | about 7kg |
| Max charge current | 1C |
| Charging method | charge with constant current 1C to 25.2v,then charge with constant voltage 24.5v, till charge current less than 0.01C |
| Max discharge current | 1C |
| Discharge cut-off voltage | 9v, the over-discharge detection voltage of PCM |
| Operating environment | Charging, 0°C ~ 45°C ; 65±20%RH |
| Discharging, -20°C~60°C ; 65±20%RH | |
| Storage environment | -20°C~45°C |
| 65±20%RH | |
| storage for a long time(>3 months) and the storage condition shall be:<35°C;65±20%RH; | |
| CycleLife (80% Prime Capacity) : |
>300times |
| Charging Attention | Charging current and charging voltage should be less than specified in the Product Specification. |
| The charger shall be designed to comply with Specification. | |
| It is dangerous that charging with higher current or voltage than Product Specification may cause damage to the cell electrical,mechanical safety performance. |
PCM Parameter:
| Over charge detection voltage | Over charge detection delay time | Over charge release voltage |
| 4.3*n(in series)±0.05V | 80-200ms | 4.1*n(in series)± 0.05V |
Over discharge protection
| Over discharge detection voltage | Over discharge detection delay time | Over discharge release voltage |
| 2.4*n(in series)±0.1V | 40-100ms |
3*n(in series)± 0.1V |
Over current protection
| Over current detection voltage | Over current detection current | Detection delay time | Release condition |
| 150±30mV | 2-5A | 10-20ms |
Cut load |
Short protection
| Detection condition | Detection delay time | Release condition |
| Exterior short circuit | 5-50ms |
Cut short circuit |
Weight of liion battery is half of the Ni-Cd or NiMh battery with same capacity,volume is 20%-30% of NiCd battery and 35%-50%NiMh battery.
Voltage of one liion battery cell is 3.7V(average value),it's equivalent to equivalent to three NiCd or NiMh battery cell connected in series.
Liion battery do not contain harmful metallic substances such as Cd,Pb,Hg and so on.
Liion battery do not contain metal lithium,so it's not limited by the rules on the aerobus of prohibit to carry lithiun battery.
In the normal condition,the cycle life of lithium battery is more than 500 time, LiFePO lithium battery can reach to 2000 times
Memory effect is a phenomenon of the capacity of battery reduced during the cycle of charge-discharge.Lithium battery absent of this effect.
12 month quality warranty,if there is any quality issue in our battery,we can send you free replacement.
we will always be here when you need us!!!
