Place of Origin: | Guangdong, China |
---|---|
Brand Name: | HHS |
Certification: | MSDS,UN38.3,CE,RoSH |
Model Number: | LiFePO4 4s66p battery pack |
Minimum Order Quantity: | 10 - 99 Pieces |
Price: | $195.00 - $495.00 |
Packaging Details: | 12v 200Ah lithium ion battery : 1).Standard and safe carton package 2).According to your requirements. |
Supply Ability: | 5000 Piece/Pieces per Month 12v 200Ah lithium ion battery |
Application: | Solar Energy Storage Systems, Solar System/golf Car | Weight: | 23.0kg |
---|---|---|---|
Type: | Li-Ion | Product: | 12v 200Ah Lithium Ion Battery |
Net Weight: | 22.0kg | Warranty: | 365 Days |
Cycle Life: | 2000 Times | Payment: | T/T,Paypal,L/C |
Sample: | Accept | Color: | Blue/black/yellow |
Battery Size: | 520*270*210mm | Port: | Shenzhen/HK |
High Light: | Deep Cycle Battery For Solar Storage,12v 200Ah Deep Cycle Battery,26650 LiFePO4 battery |

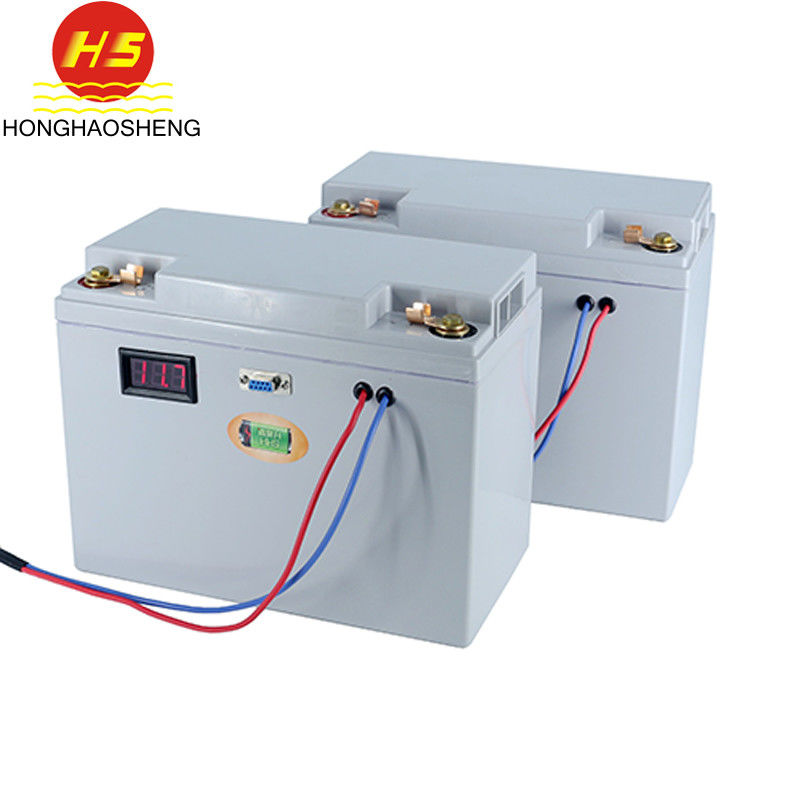

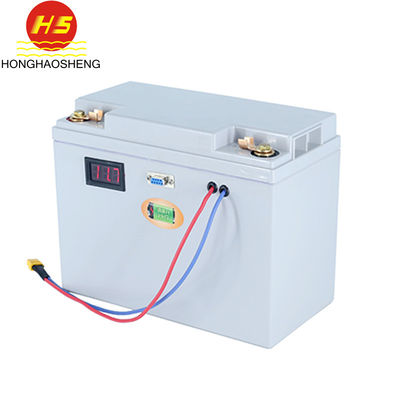

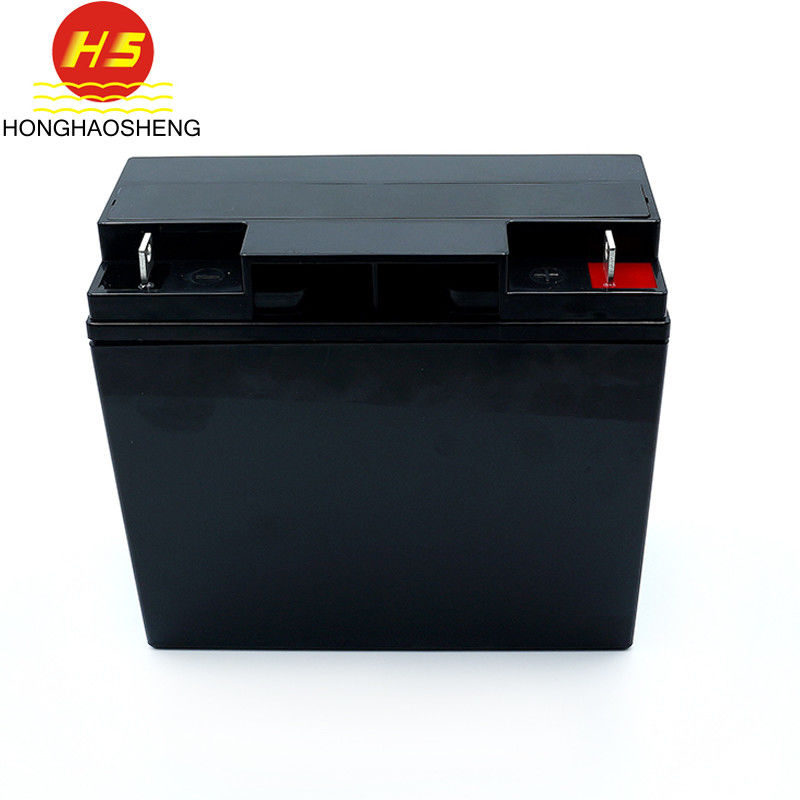

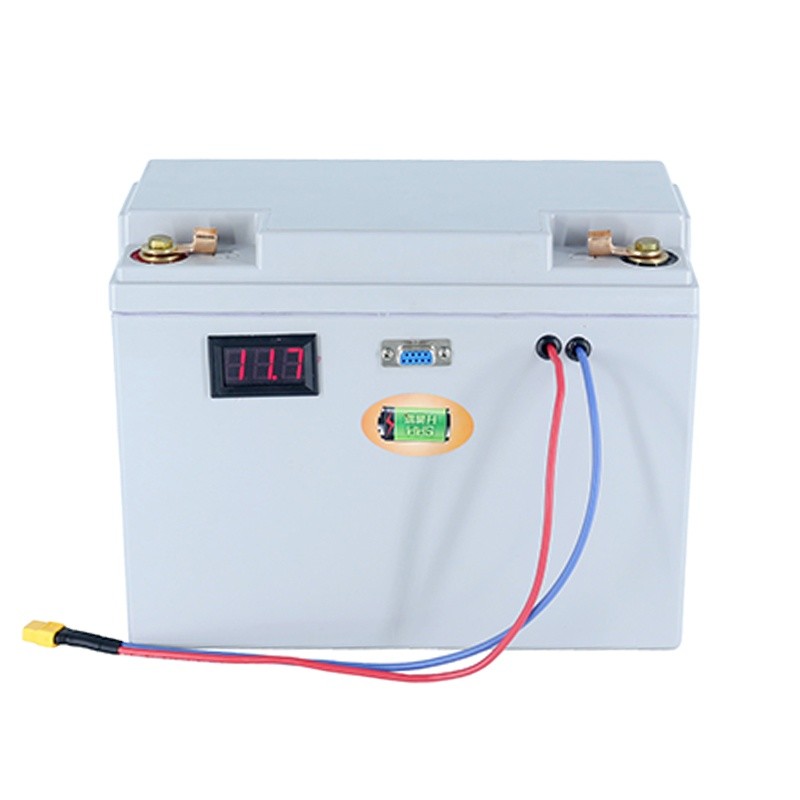

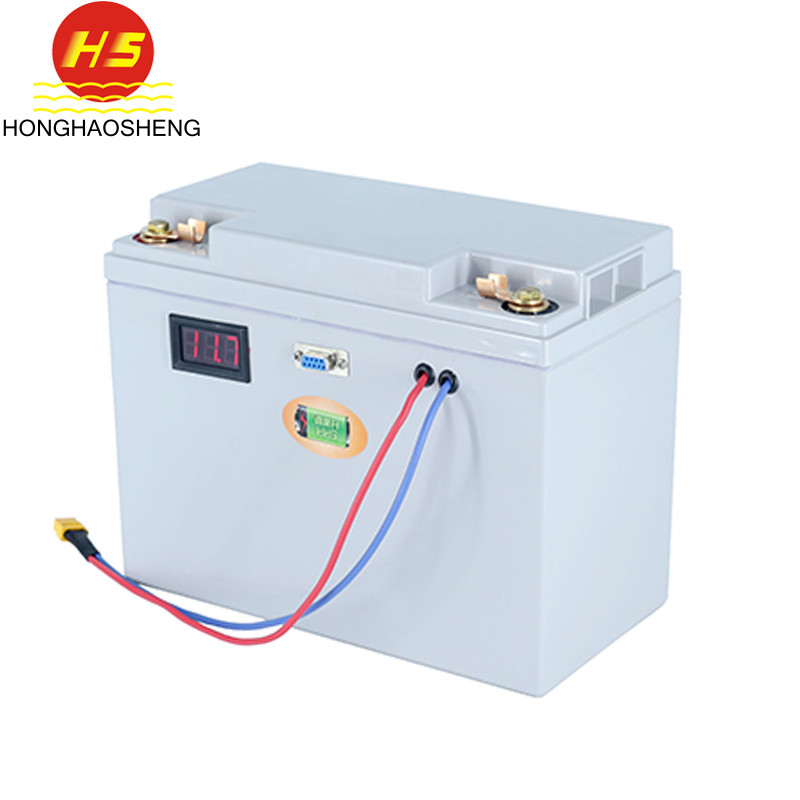

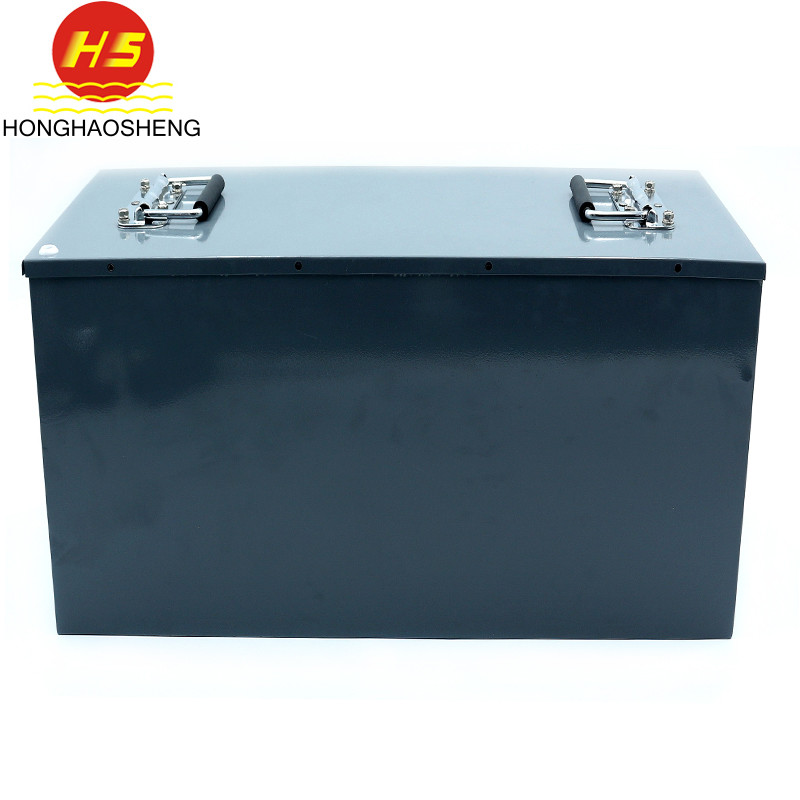

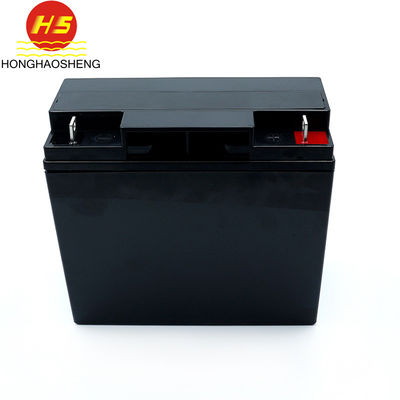

Deep cycle 26650 LiFePO4 12v 200Ah Solar Storage Lithium Battery
Capacity: |
50Ah/100Ah/150Ah/200Ah |
Nominal Voltage: |
12v /24V /48V |
Discharge Cut-off Voltage |
2.0V (single cell) |
Max Charge Voltage |
3.7±0.05V (single cell) |
Standard Charge Current |
0.2C |
High-rate Charge Current |
1C |
Standard Discharge Current |
1C |
Max Continue Discharge Current |
3C |
Weight |
22.0KG |
Dimension |
customized |
Operating Temperature: | Charge: 0 ~ 45°C Discharge: -20 ~ 75°C |
Storage Temperature: | During 1 month: -5 ~ 35°C During 6 months: 0 ~ 35°C |
Full Size Sample Lead time: | As usual 3-7 working days |
Cycle life: | >2000times (100% capacity) |
Standard Set | |
Capacity: | 30Ah,50Ah,100Ah,150Ah |
Nominal Voltage: | 12v,24v,48v,72v |
Configguration | 4s20p, 4s50p,8s20p, 8s50p |
DIMENSION | 520*270*210mm ( reference ) |
OEM/ODM | accepted |
1.Do not throw battery into water or make it wet;
2.Keep the battery away from heat source(like fire or heater);
3.Do not throw the battery into fire or heat the battery;
4.Forbid to hammer to trample the battery;
5.Forbid disassembling the battery in anyway
1.Long life, large capacity and good shock resistance
2.Low self-discharge and good discharge performance at low temperature
3.Strong charging acceptance and quick-charging capability
4.Strong over-discharge resistance and charge retention
5.Maintenance-free and no acid or water for maintenance in usage
6.Excellent large current discharge performance, and have obvious advantages in startup and climbing
7. High temperature performance
8. Environmental friendly
9. Lighter weight smaller size
10.Most safe no explosion no fire
DIMENSION:520*270*210MM | ||||||
Max Cells | Configguration | Capacity | Cycle life | |||
1.5Ah | 2.0Ah | 3.0Ah | 3.3Ah | |||
264 | 4s66p | 12v 99Ah | 12v 132Ah | 12v 198Ah | 12v 217.8Ah |
2000cycle capacity>60% |
8s33p | 24v 49.5Ah | 24v 66Ah | 24v 99Ah | 24v 108.9Ah |
Packaging | Normal OPP bag;PVC bag;Customized box |
Carton Size | 60cm*40cm*35cm or customized,24 bags/ carton |
Gross weight | 9.0 KGS |
MOQ | 10pcs |
