| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | HHS |
| Certification: | CE/RoHS/UN38.3/MSDS |
| Model Number: | 18650 20s10p Li-ion Battery |
| Minimum Order Quantity: | 10 - 99 Pieces |
| Price: | $260.00 - $450.00 |
| Packaging Details: | 72v 32Ah lithium ion battery: 1. Carton 2. as your requirements. |
| Supply Ability: | 5000 Piece/Pieces per Day 72v 32Ah lithium ion battery |
| Application: | Electric Bicycles/Scooters, E-scooter/motorcycle | Weight: | 11kg |
|---|---|---|---|
| Type: | Li-Ion | Charge Cut Off Voltage: | 84v |
| Discharge Cut Off Voltage: | 60v | Warranty: | 12 Months |
| Color: | Black/blue/yellow | Cycle Life: | 500 Times |
| Shape: | Can Be Customized | Payment: | Paypal.TT.LC.Western Union |
| Battery Type: | 72v 32Ah Lithium Ion Battery | Battery Size: | T140*W180*L390mm With BMS |
| High Light: | 20s10p 72v 32Ah HHS battery,20s10p Scooter HHS battery,72v 32Ah smart drifting scooter battery |
||

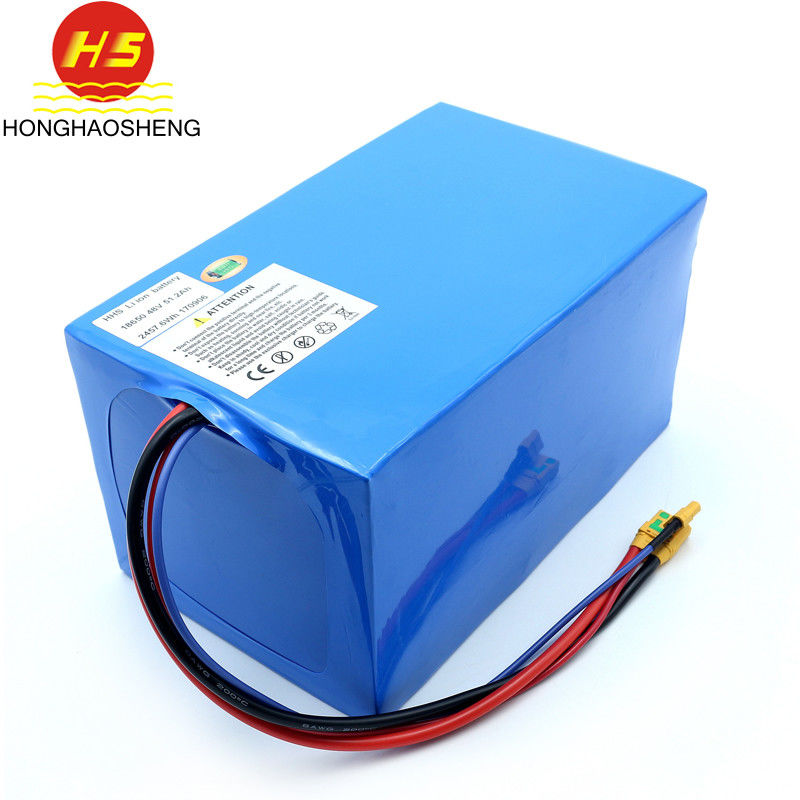

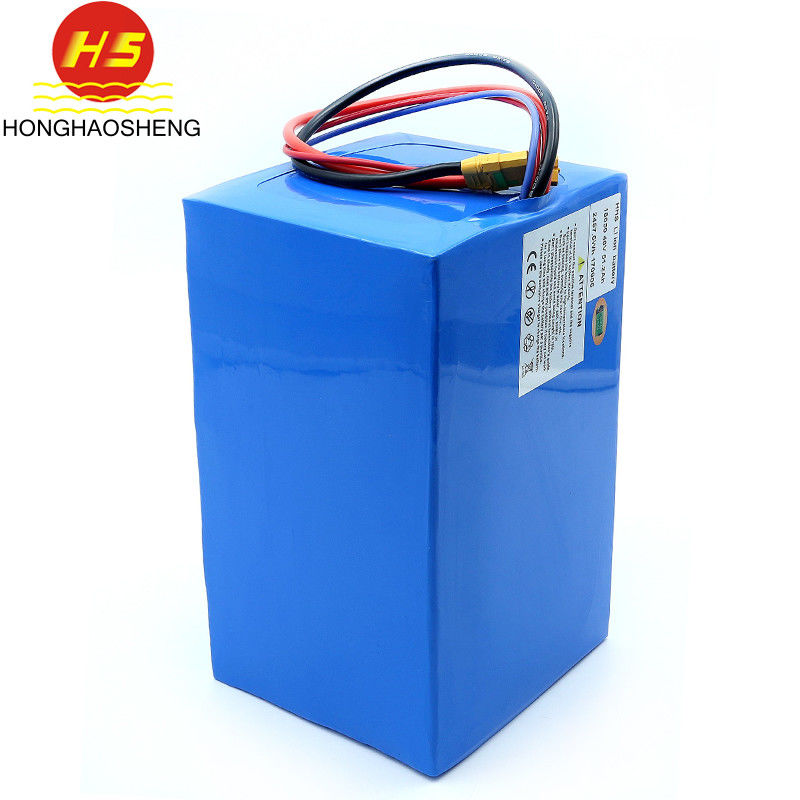

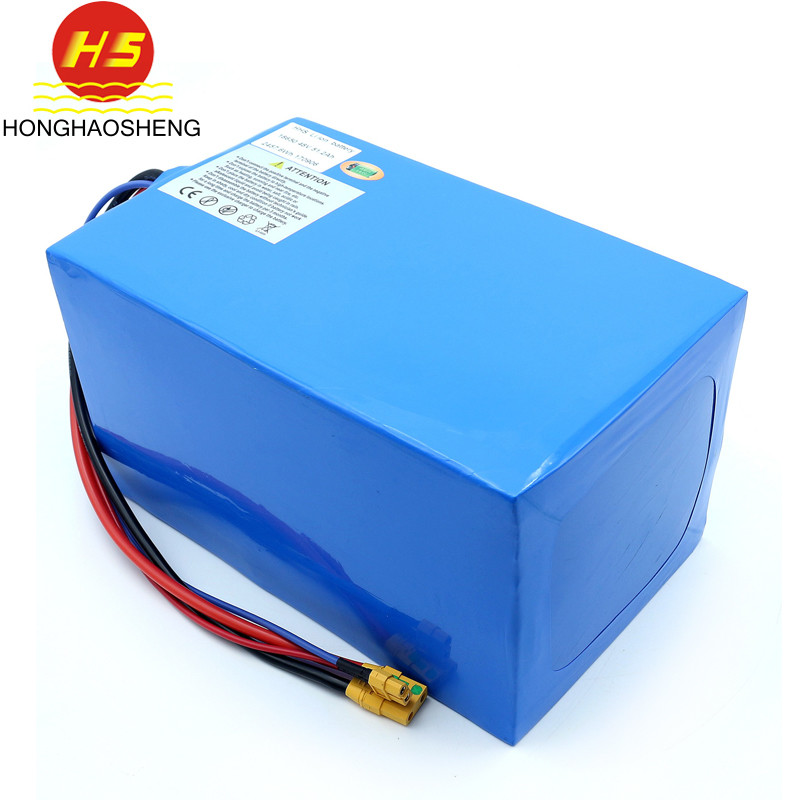

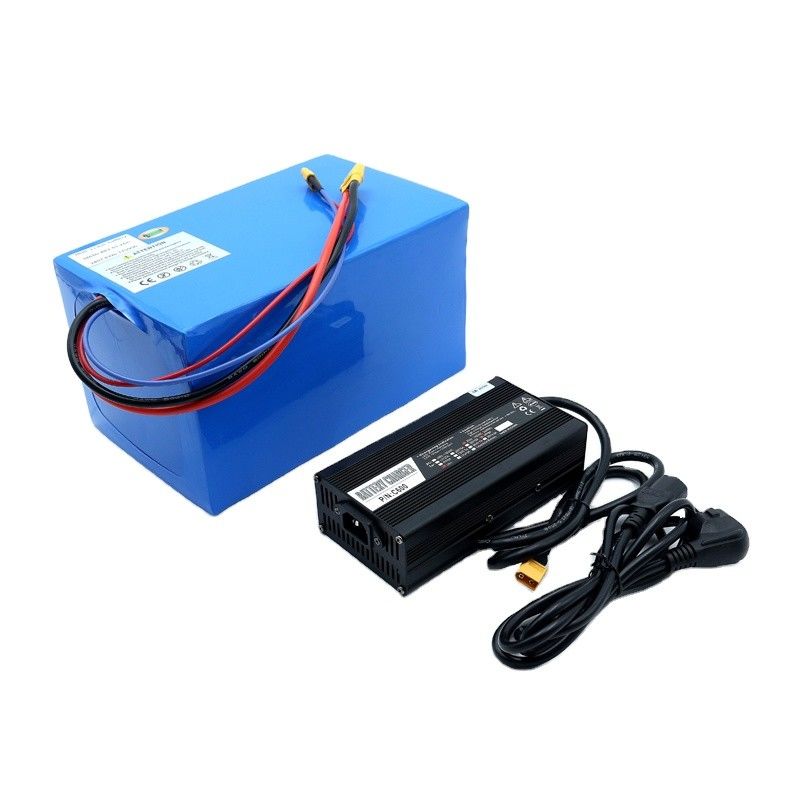

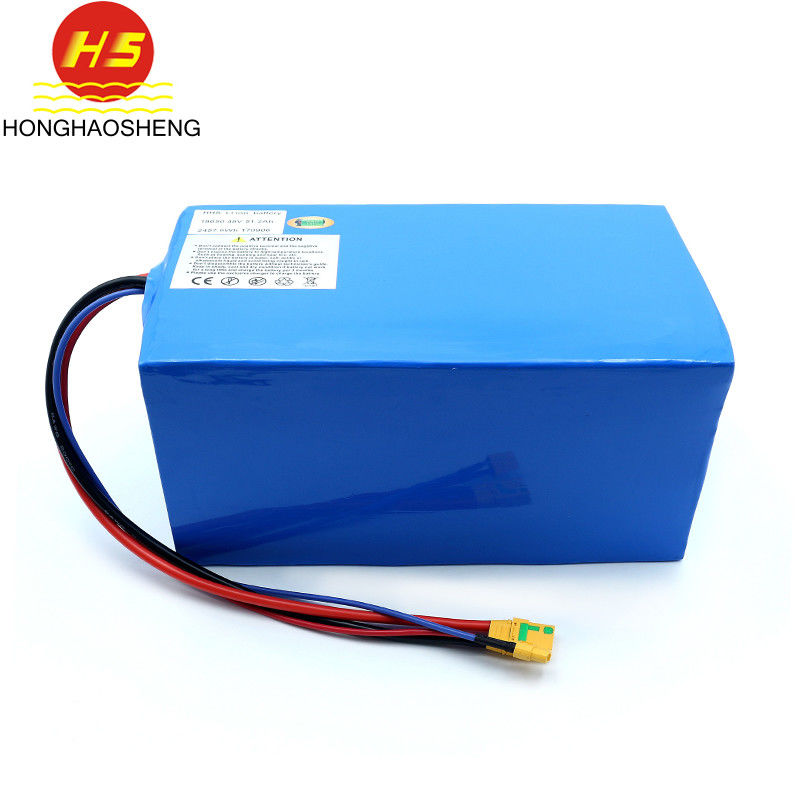

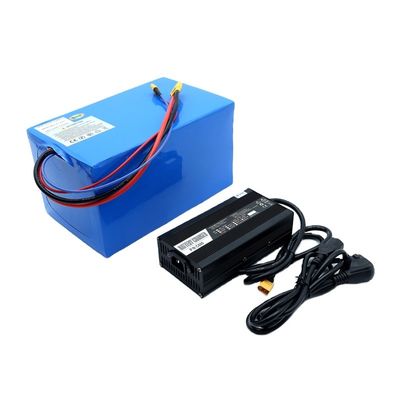

18650 20s10p 72v 32Ah ion 2000w Electric Scooter Lithium Battery
|
Capacity: |
32Ah |
|
Nominal Voltage: |
72V |
|
Discharge Cut-off Voltage |
2.75V (single cell) |
|
Max Charge Voltage |
4.2±0.05V (single cell) |
|
Standard Charge Current |
2A |
|
High-rate Charge Current |
5A |
|
Standard Discharge Current |
20A |
|
Max Continue Discharge Current |
35A for 2000w |
|
Weight |
11.0KG |
|
Dimension |
customized |
| Operating Temperature: | Charge: 0 ~ 45°C Discharge: -20 ~ 75°C |
| Storage Temperature: | During 1 month: -5 ~ 35°C During 6 months: 0 ~ 35°C |
| Full Size Sample Lead time: | As usual 3-7 working days |
| Cycle life: | 500times |
1.Long life, large capacity and good shock resistance
2.Low self-discharge and good discharge performance at low temperature
3.Strong charging acceptance and quick-charging capability
4.Strong over-discharge resistance and charge retention
5.Maintenance-free and no acid or water for maintenance in usage
6.Excellent large current discharge performance, and have obvious advantages in startup and climbing
7. High temperature performance
8. Environmental friendly
9. Lighter weight smaller size
10.Most safe no explosion no fire
|
||||||
| DIMENSION:360*85*130MM | ||||||
| Max Cells | Configguration | Capacity | Cycle life | |||
| 2.2Ah | 2.6Ah | 2.9Ah | 3.4Ah | |||
| 52 | 10S5P | 36V 11Ah | 36V 13Ah | 36V 14.5Ah | 36V 17Ah |
500cycle capacity>60% |
| 13S4P | 48V 8.8Ah | 48V 10.4Ah | 48V 11.6Ah | 48V 13.6Ah | ||
| DIMENSION:360*82*132MM | ||||||
| 65 | 15S5P | -- | -- | 36V 14.5Ah | 36V 17Ah | |
| Packaging | Normal OPP bag;PVC bag;Customized box |
| Carton Size | 60cm*40cm*35cm or customized,24 bags/ carton |
| Gross weight | 9.0 KGS |
| MOQ | 10pcs for sample |
