| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | HHS |
| Certification: | CE UN38.3 Rohs,MSDS |
| Model Number: | 18650 7S3P |
| Minimum Order Quantity: | 10 - 99 Pieces |
| Price: | $15.00 - $50.00 |
| Packaging Details: | our standard blister package or in accordance with your requirement |
| Supply Ability: | 30000 Piece/Pieces per Day ,25.2v li-ion battery pack |
| Application: | Power Tools, Home Appliances, Two-way Radio / Power Tool | Weight: | 0.7kg |
|---|---|---|---|
| Type: | 18650 Li-ion Battery Pack 6900MAH 25.2 Volt Lithium Ion Battery | Warranty: | 365 Days |
| Cycle Life: | 500 Times | MOQ: | 10 Pcs |
| Delivery Time: | 5-7 Days | Payment Iterms: | L/C,T/T ,Western Union,Paypal |
| OEM/ODM: | Yes | Battery Size: | T56*H130*L76 |
| High Light: | 18650 7S3P HHS Battery 25.2 Volt,18650 7S3P HHS Battery 6900MAH,18650 7S3P HHS Battery |
||

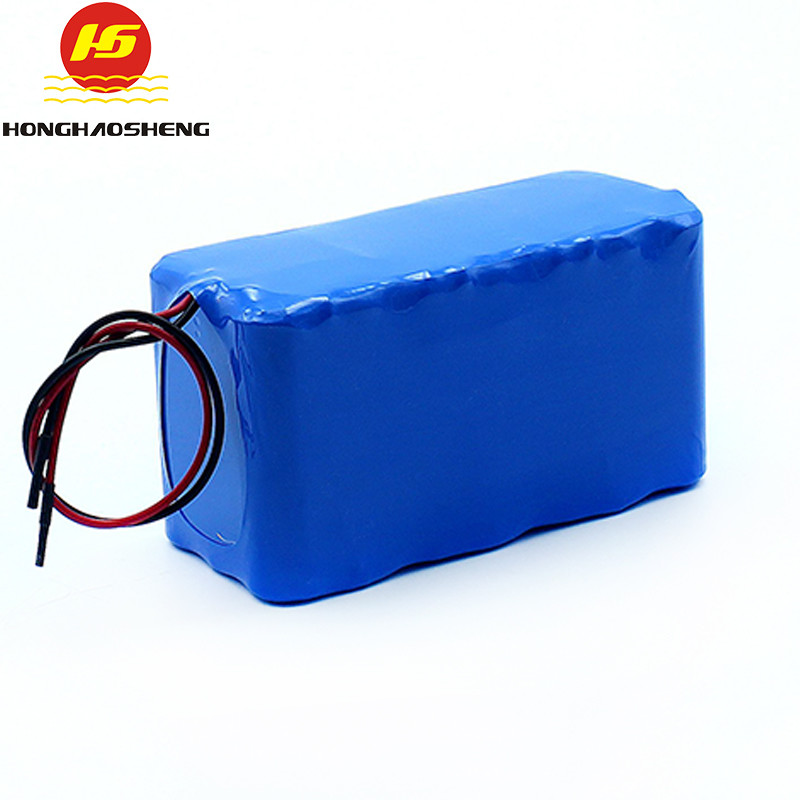

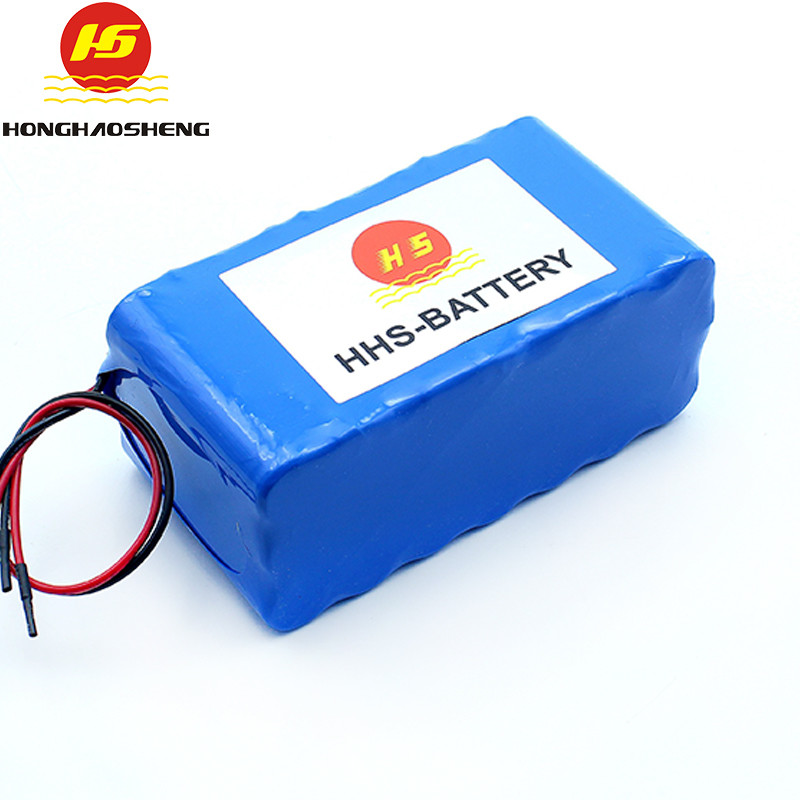

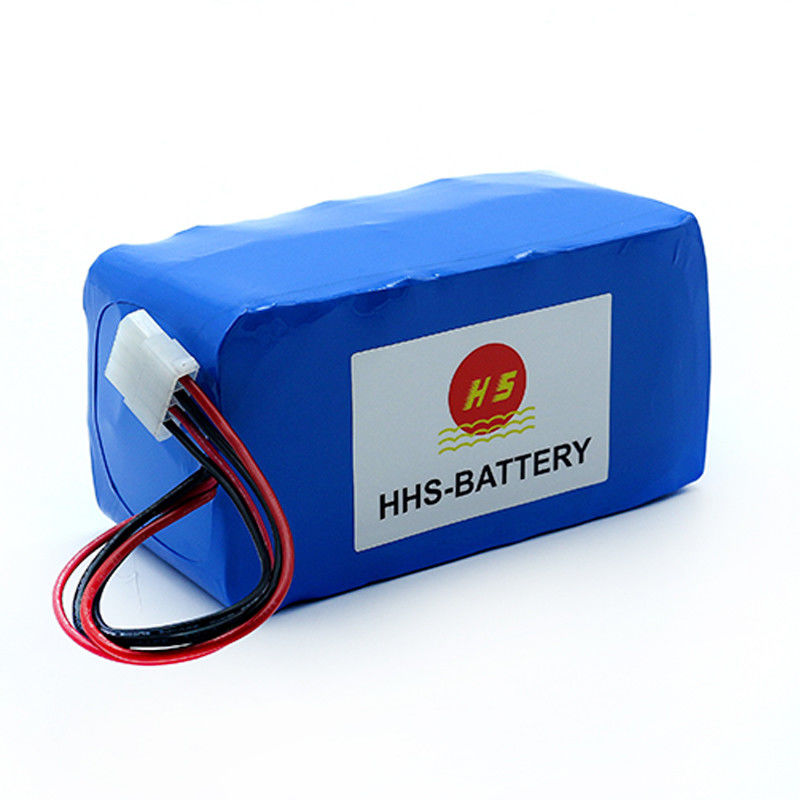

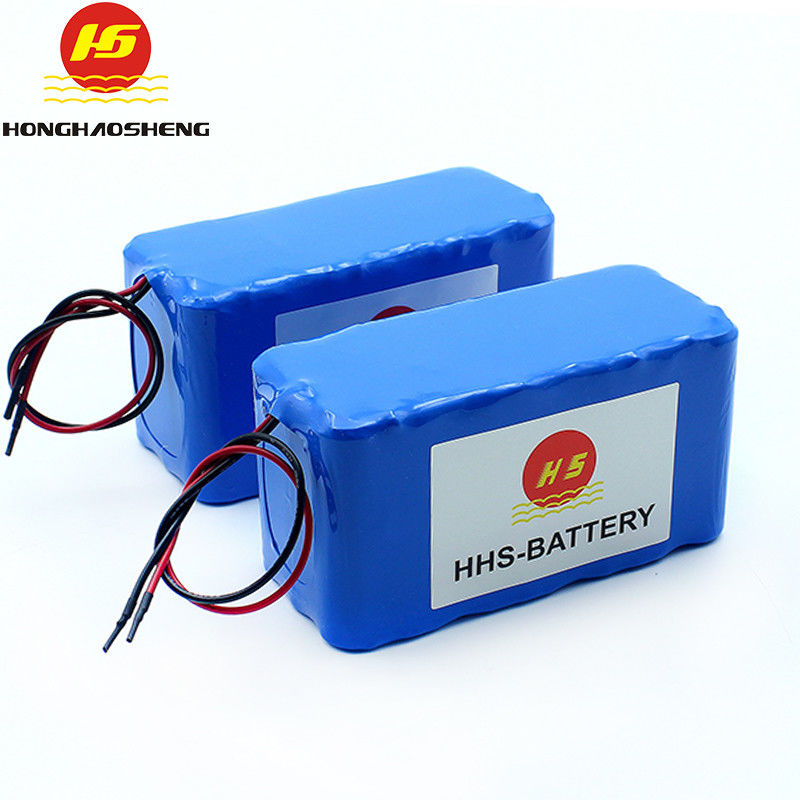

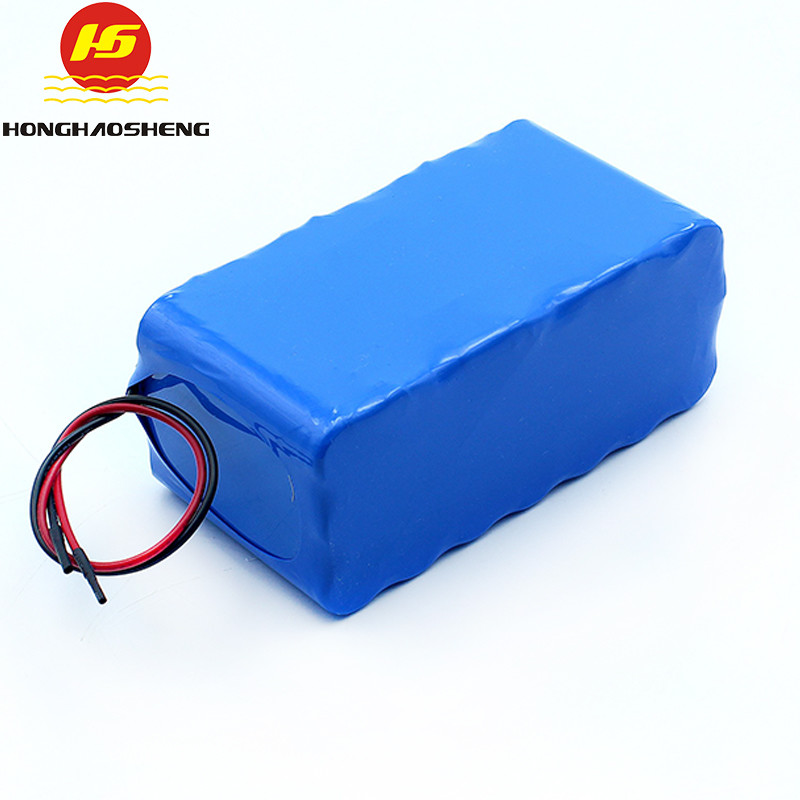

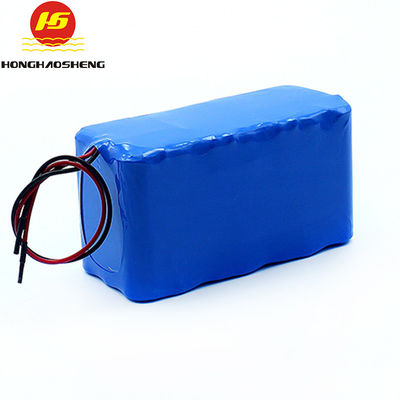

18650 li-ion 6900MAH 25.2 volt lithium ion Medical Lithium Battery
Detailed specifications:
|
# |
Item |
Specifications |
|
1 |
Nominal Capacity |
9Ah 0.2C Discharge |
|
2 |
Minimum Capacity |
9Ah lithium ion batteries |
|
3 |
Nominal Voltage |
25.2V lithium ion batteries |
|
4 |
Charge Current |
Standard Charge:0.2C Rapid Charge:1C |
|
5 |
Standard Charging Method |
0.5C CC(Constant Charge)charge to 12.8V, then CV(Constant Voltage 14.4v)charge till charge current decline less than 0.01C |
|
6 |
Charging Time |
Standard Charging: Approx. 1hours Rapid Charging: Approx. 0.5hours |
|
7 |
Max. Charge Current |
Constant Current 1C5A Constant Voltage14.4v 0.01C5A Cut-off |
|
8 |
Max. Discharge Current |
Constant Current 1.0C5A End Voltage 8v |
|
9 |
Standard discharge Current |
Constant Current 0.2C5A End Voltage 8V |
|
10 |
Discharge Cut-off Voltage |
12V |
|
11 |
Charge Cut-off Voltage |
12.75V |
|
12 |
Initial Impedance |
Less than 200moΩ |
|
13 |
Weight |
600g |
|
14 |
Operating Temperature |
Charging:0-45c Discharging:-20-60c |
|
15 |
Storage Temperature |
-5-35°c |
|
16 |
Storage Humidity |
Less than 75%RH |
|
17 |
Appearance |
Without scratch, distortion, contamination, and leakage |
|
18 |
Standard Environmental Condition |
Temperature:18-28 Humidity:45-75%RH Atmospheric Pressure:86-106Kpa |
18650 li-ion battery pack 6900MAH 25.2 volt lithium ion battery
Lithium battery features:
1. Longer storage life than NiMH battery
2. Light weight and higher energy density than any rechageable battery
3. Installed IC chip will prevent the battery pack from over charge and over discharge
It helps protect battery chemistry integrity and prolongs battery life.
4. Installed polyswitch will cut off power if battery discharge current more than 6.6Ah
5. Perfect for building up battery pack for medical equipment Back-up or EPS Emergency Power
6. Supply which requires compact size and lighter weight
7. The battery module is wrap by PVC
rechargeable 18650 25.2v li-ion battery pack
Features
1. Under normal use, Great Power batteries can provide more than 500 charge/discharge cycles, or 5 year of standby power
2. The cell can be fully charged in 1 hour with Great Power specified charging conditions, and can withstand a discharge rate up to 10C
3. The cell exhibits super efficiency and durability for both high temperature and low temperature operations, at the range from -10°C to 70°C
4. Great Power batteries can be continuously overcharged at 0.1Crate for 48 hours without leakage or deformation
5. After 1-Month storage at 20±5°C, a fully charged cell can still deliver approx. 70% of its nominal capacity
18650 li-ion battery pack 6900MAH 25.2 volt lithium ion battery
Application
1. Cordless phones
2. Power tools
3. Two-way radio,medical device
4. Portable DVD
5. Digital camera,emergency lighting
Charging current: Cannot surpass the biggest charging current which in this specification book stipulated.
Charging voltage: Does not have to surpass the highest amount which in this specification book stipulated to decide the voltage.
Charge temperature: The battery must carry on the charge in the ambient temperature scope which this specification book stipulated.
Uses the constant electric current and the constant voltage way charge, the prohibition reverse charges. If the battery positive electrode and the cathode meet instead, can damage the battery.
rechargeable 18650 25.2v li-ion battery pack Discharging current
The discharging current does not have to surpass this specification book stipulation the biggest discharging current, the oversized electric current electric discharge can cause the battery capacity play to reduce and to cause the battery heat.
discharge temperature
The battery discharge must carry on in the ambient temperature scope which this specification book stipulated
18650 li-ion battery pack 6900MAH 25.2 volt lithium ion battery
After the short time excessively discharges charges immediately cannot affect the use, but the long time excessively discharges can cause the battery the performance, battery function losing. The battery long-term has not used, has the possibility to be able to be at because of its automatic flashover characteristic certain excessively discharges the condition, for prevented excessively discharges the occurrence, the battery should maintain the certain electric quantity.
The battery should store in the product specification book stipulation temperature range. If has surpasses above for 3 months the long time storage, suggested you should carry on additional charge to the battery.
Delivery:
1. For small order we can ship the goods to you within 5 days,large order depend our stock,pls check with us.
2. Within 7 days the goods will arrive at your door
3. Well packed to protect your goods from physical damage.
4. Any express you prefer is ok.
Company intruduction:
Shenzhen Honghaosheng Electronic Co., LTD
Who Shenzhen Honghaosheng Electronics Co., Ltd, is a professional lithium battery manufacturer and we have almost 8 years of manufacturing, developing and exporting products.
We have the advantages of fast shipping and quick response to operate orders from international buyers. Specializing in R&D, production and distributing of lithium batter..
Product show:
Factory view:
Certificate:
Why do you choose us?
1. Professional lithium-ion battery pack for over 10 years,have own factory.
2. Strong R&d team to support.
3. Provide best brand cell: Sanyo,Panasonic,Samsung,LG,Sony.
4. BMS solution come from NSK and Recoh.
5. Offer OEM service for customer small order.
6. Quick action & respond.
7. competitive price and best sales and after-sales sevice.
Any questions or confusions about battery, please feel free to contact us.
We will try our best to solve your problem.
