| Place of Origin: | China |
|---|---|
| Brand Name: | HHS |
| Certification: | CE/ROSH/UL/MSDS/UN38.3 |
| Model Number: | HHS4820 |
| Minimum Order Quantity: | 10 - 99 Sets |
| Price: | $70.00 |
| Packaging Details: | One piece 48v 20.3ah electric bicycle battery into a box and two boxes into a carton |
| Supply Ability: | 5000 Set/Sets per Week 48v 20.3ah electric bicycle battery |
| Type: | Lithium Battery | Voltage: | 48V |
|---|---|---|---|
| Capacity: | 21 - 30Ah | Name: | 48v 20.3ah Electric Bicycle Battery |
| Cycle Life: | 800times | Cell: | 91pcs Brand 2900mah Cells Inside |
| Charger: | 54.6v 2-10A Charger | RGD: | 1‰ |
| Lead Time: | 7-10days | Sample Order: | Acceptable |
| Warranty: | 12months | Battery Case: | Tigershark,bottle,silverfish,frog,dorado Etc All Is Ok |
| High Light: | 13S7P Custom Lithium Battery Packs,48v 20.3ah Lithium Battery Packs,HHS 48v 18650 battery |
||

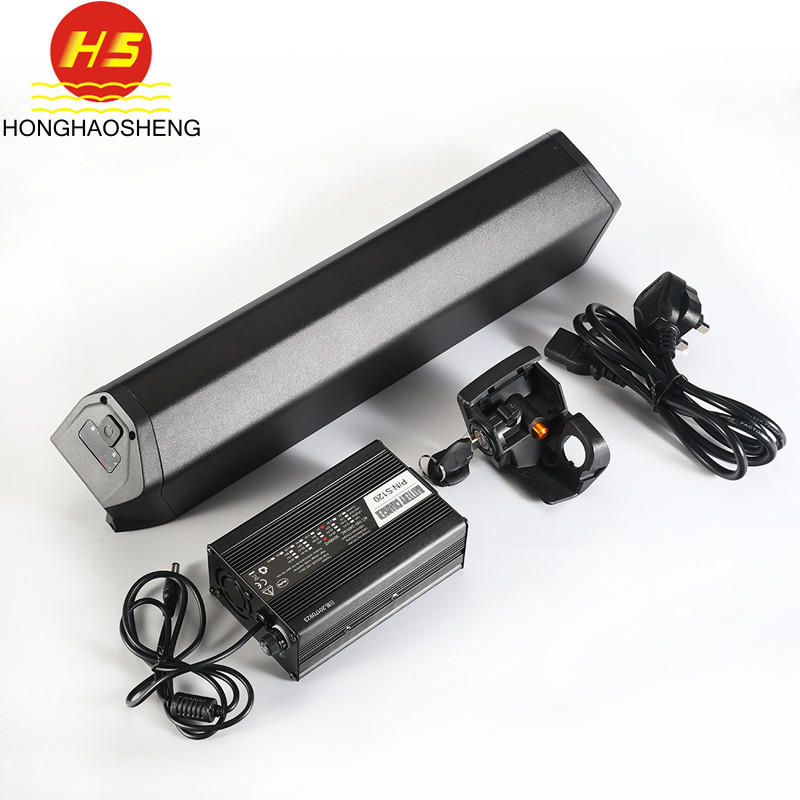

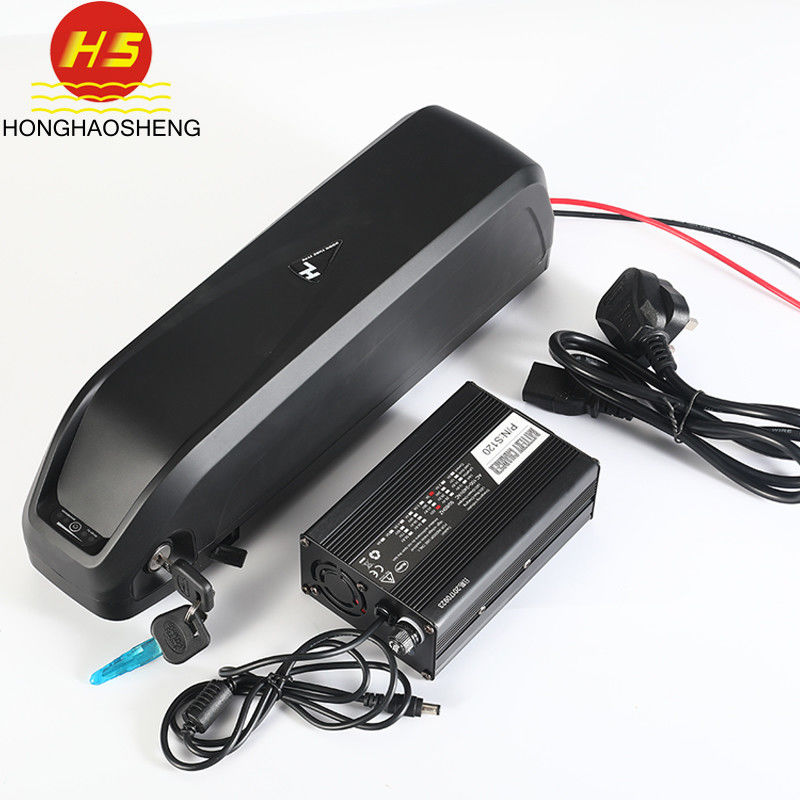

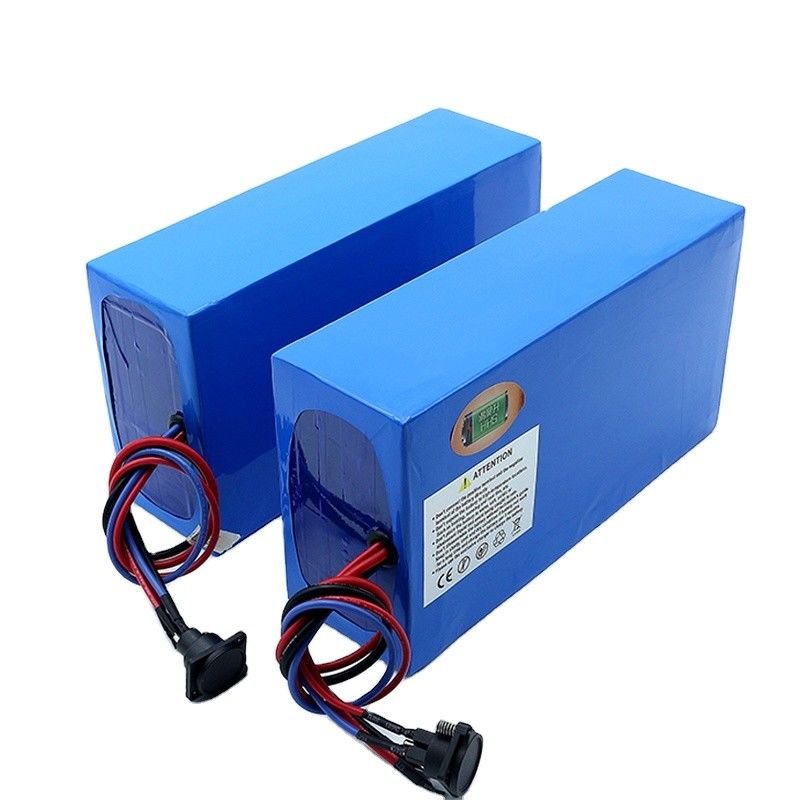

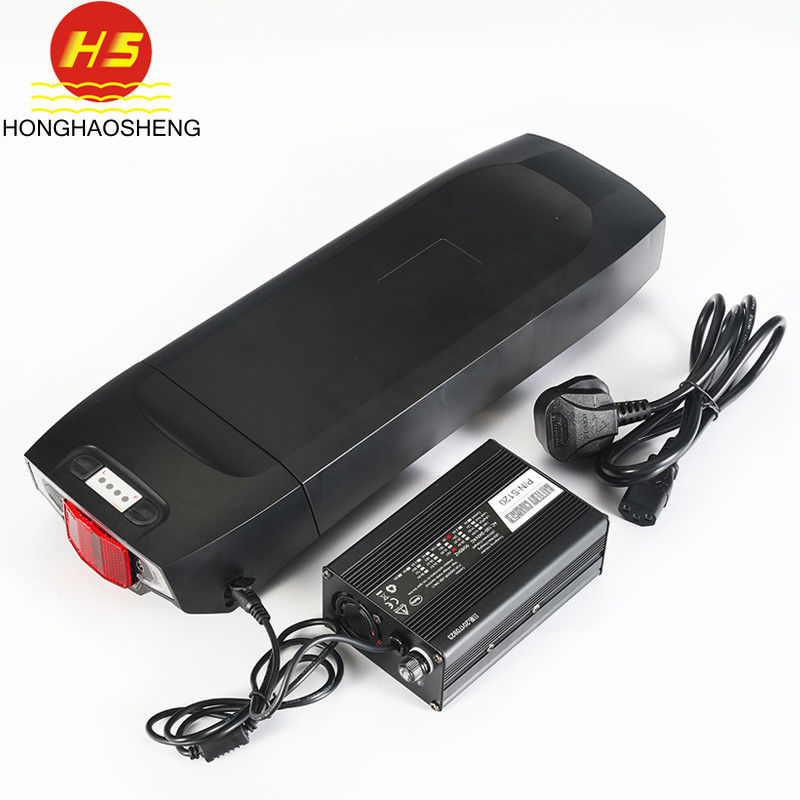

13S7P 18650 48v 20.3ah electric bicycle Custom Lithium Battery Packs
|
Capacity: |
20.3Ah |
|
Nominal Voltage: |
48V |
|
Discharge Cut-off Voltage |
2.75V (single cell) |
|
Max Charge Voltage |
4.2±0.05V (single cell) |
|
Charge Current |
2A-10Amp |
| Charging method |
CC/CV |
| Cell | 91pcs brand 2900mah cells inside |
|
Max Discharge Current |
70Amp |
|
Weight |
5KG |
|

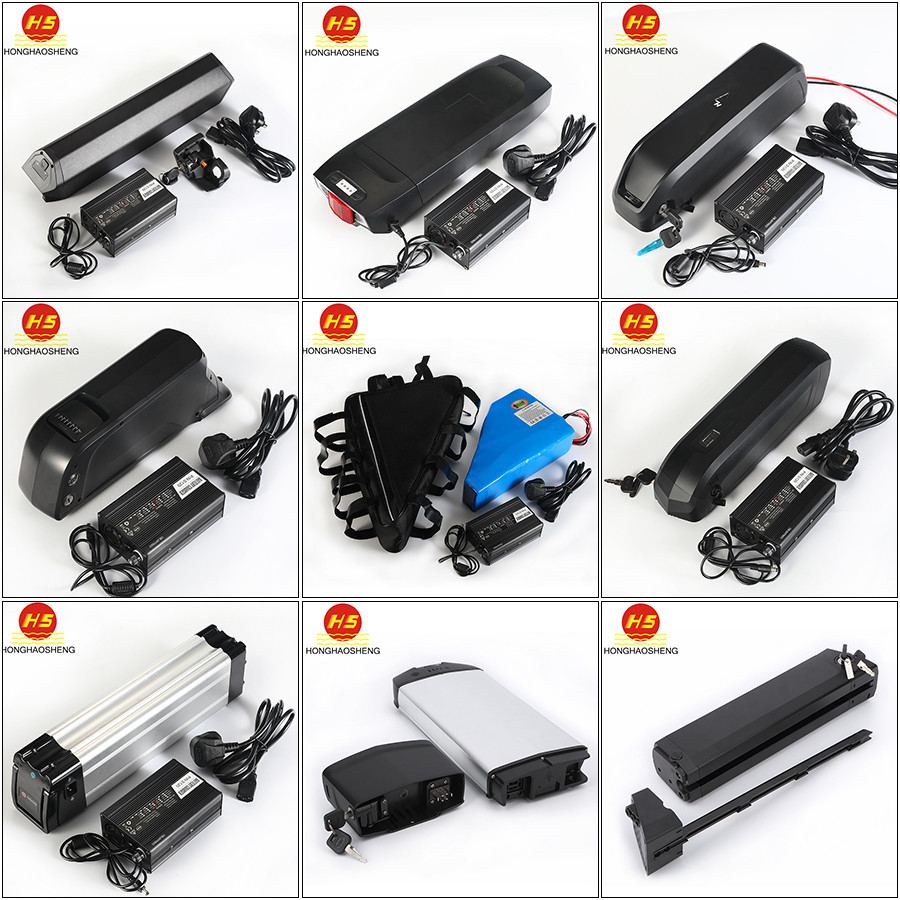

Battery case |
tigershark,bottle,silverfish,frog,dorado etc all is ok |
| Operating Temperature: | Charge: 0 ~ 45°C Discharge: -20 ~ 55°C |
| Storage Temperature: | During 1 month: -5 ~ 35°C During 6 months: 0 ~ 35°C |
| Full Size Sample Lead time: | As usual 7-10working days |
| Cycle life: | >800times |
1. DC2.1 charging Port
2. Four levers LED capacity indicator
3. Standard USB Port
4. 30Amps high performance blade type discharge fuse
5. 2-5Pins discharging plug
HHS Warning
1. Don’t connect the positive terminal and the negative terminal of the battery directly.
2. Don’t expose the battery to high-temperature locations. Such as heating, sunning and near fire, etc.
3. Don’t place the battery in water, salt, acidic or alkalescent liquid and avoid being caught in rain.
4. Don’t disassemble the battery without technician’s guide.
5. Keep in shady, cool and dry condition if battery not work for a long time and charge the battery per 3 months.
6. Please use the exclusive charger to charge the battery.
1).Professional lithium ion battery manufacturer since 2004
and have our own factory located in Shenzhen,China.
2).Strong R&D team to support OEM or ODM service
3).Professional sales-team 24H online at your service
4),Samples for testing is welcomed
5).competitive price, good sale and after-sales service.
HHS FAQ:
1.How long is delivery time?
Samples:3-5days
Bulk order:depends on the quantity
Pls kindly help to check with our sales team. :-)
2. How about warranty ?
12months
3.How about the shipping ?
By sea/air/express all is ok, or you may have your own forwarder.
We deliver samples or small quantity by airmail express, such as DHL, FedEx, UPS, TNT, direct-line etc.
4. Is sample available?
Yes of course, sample order is welcomed!
5. What certificate do you have for battery packs?
Many of our batteries have passed CE/RoHS/MSDS/UN38.3/CE/IEC62133 certifications
6. Could I get a discounted price?
Yes price is adjustable based on quantity.
7. Did you attend any abroad exhibition?
Yes. In last few years, we went to CES in Las Vegas,Electronica in Munich,Battery show in Detroit,
CeBIT in Hanover,Interbike in Las Vegas etc.
8. Did you export goods to EU/South America/USA ect ?
YES for sure,these are our main markets.
If you need more details, please freely to contact me.
9. How can I go to the factory ?
HHS factory is located in Shenzhen city, Guangdong province, China since 2004.
Its only half a hour from Shenzhen Airport.
One hour from Guangzhou.
Samples for testing is weclomed!
